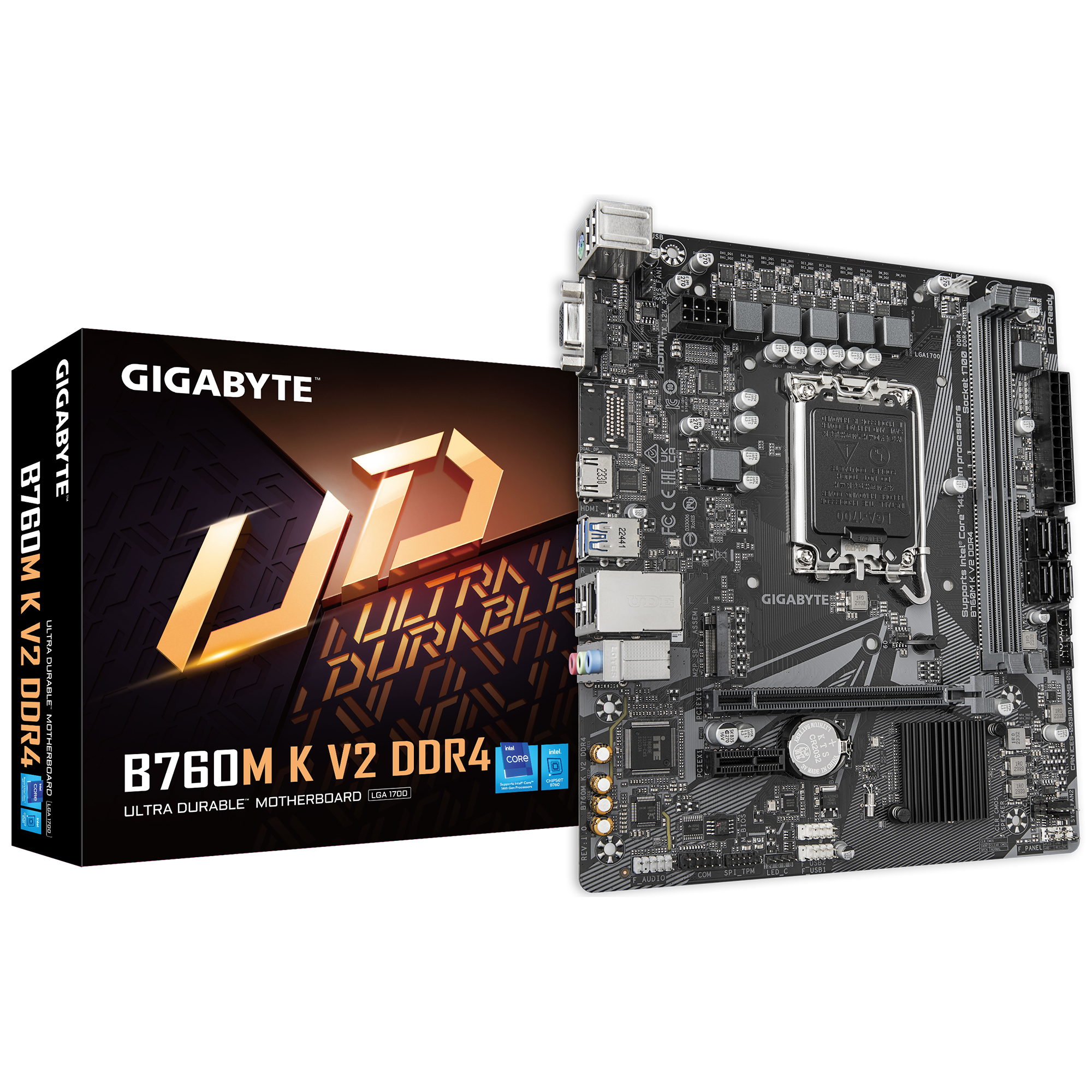

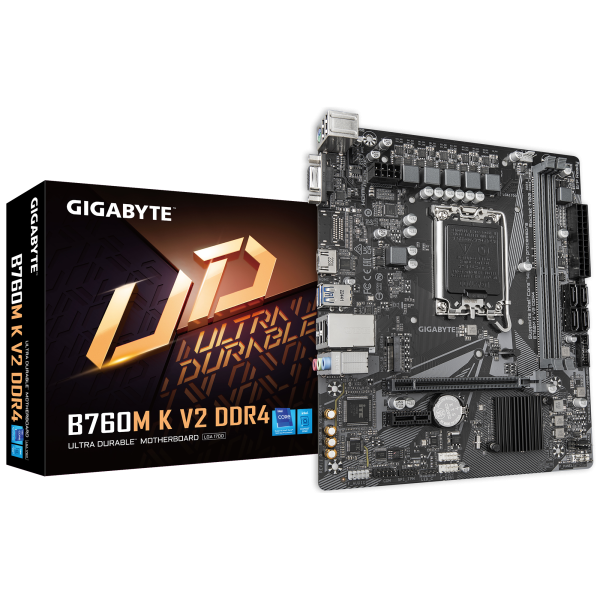

Gigabyte B760M K V2 DDR4

• Processor Support: LGA1700 socket: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
• Chipset: Intel® B760 Express Chipset
• Memory Support: 2 x DDR4 DIMM slots, up to 64GB, DDR4 3200/3000/2933/2666/2400/2133 MT/s, Dual Channel, ECC & Non-ECC (Un-buffered), XMP supported
• Graphics Ports: 1 x HDMI, 1 x D-Sub
• Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
• Storage: 1 x M.2 PCIe 3.0 x4/x2, 4 x SATA 6Gb/s, RAID 0/1/5/10 supported
• Ethernet: Realtek® GbE LAN (1 Gbps)
• Wireless & Bluetooth: Not available
• USB: Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0 — Internal: 2 x USB 3.2 Gen 1, 4 x USB 2.0
• Audio: Realtek® Audio CODEC, 7.1-channel HD Audio, S/PDIF supported
• Internal I/O Connectors: 24-pin ATX, 8-pin CPU, CPU fan, 2 x SYS fan, 1 x M.2, 4 x SATA, RGB header, USB 3.2 & 2.0 headers, TPM, serial, speaker, front panel, front audio, chassis intrusion, Clear CMOS

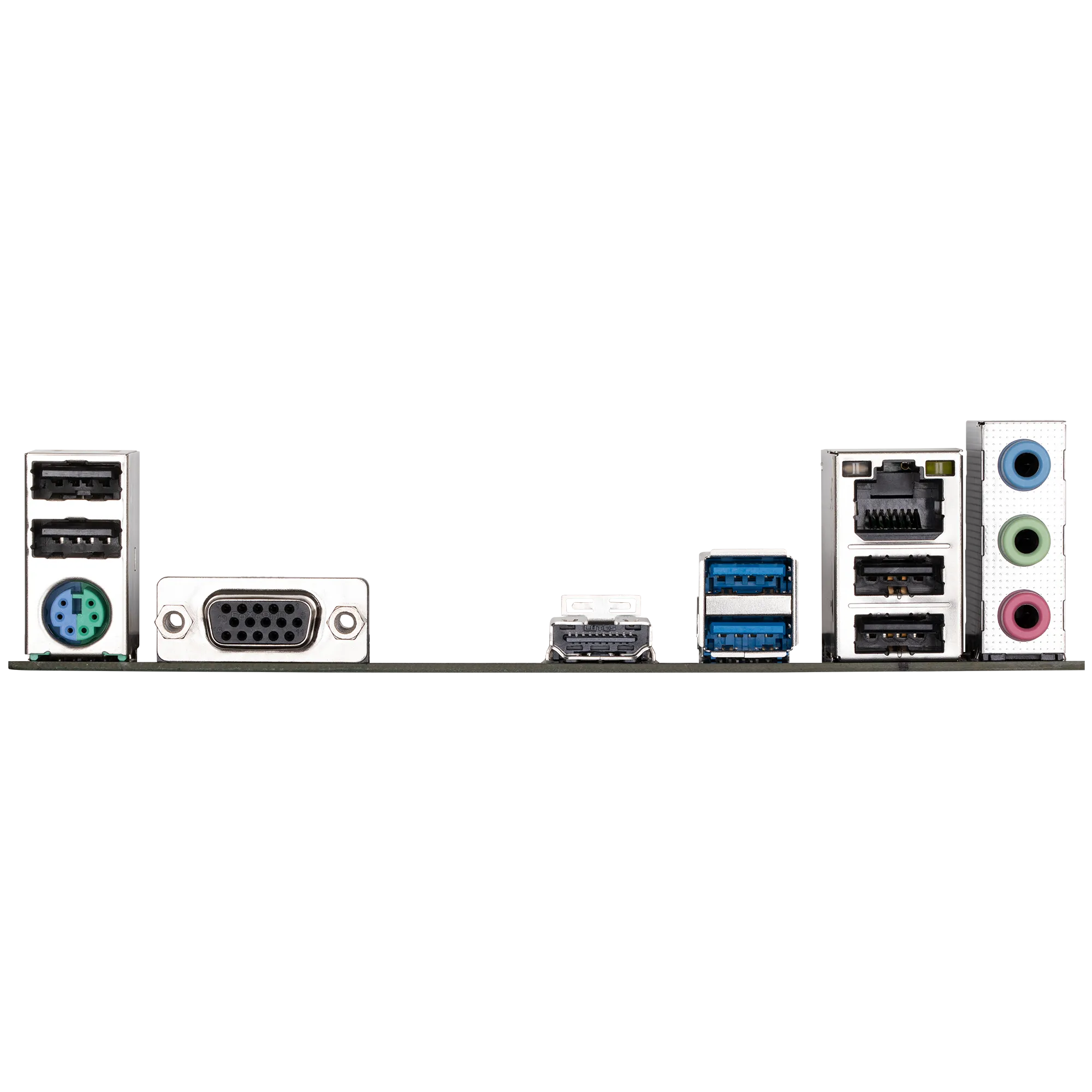

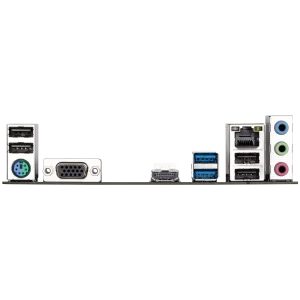

• Back Panel I/O Ports: 1 x PS/2, 1 x D-Sub, 1 x HDMI, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x RJ-45, 3 x Audio jacks
• Form Factor: Micro ATX (22.3cm x 19.3cm)
