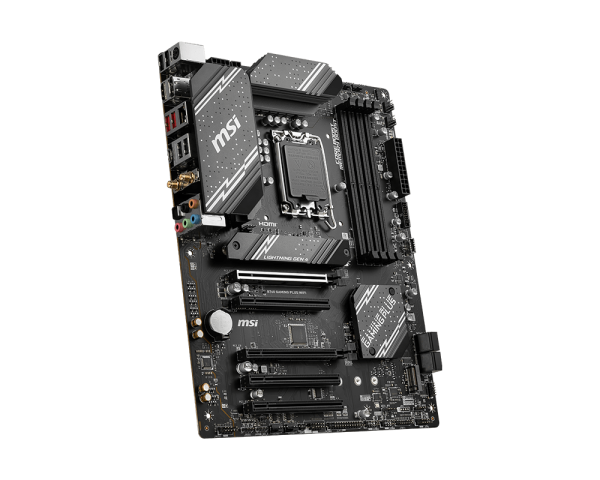

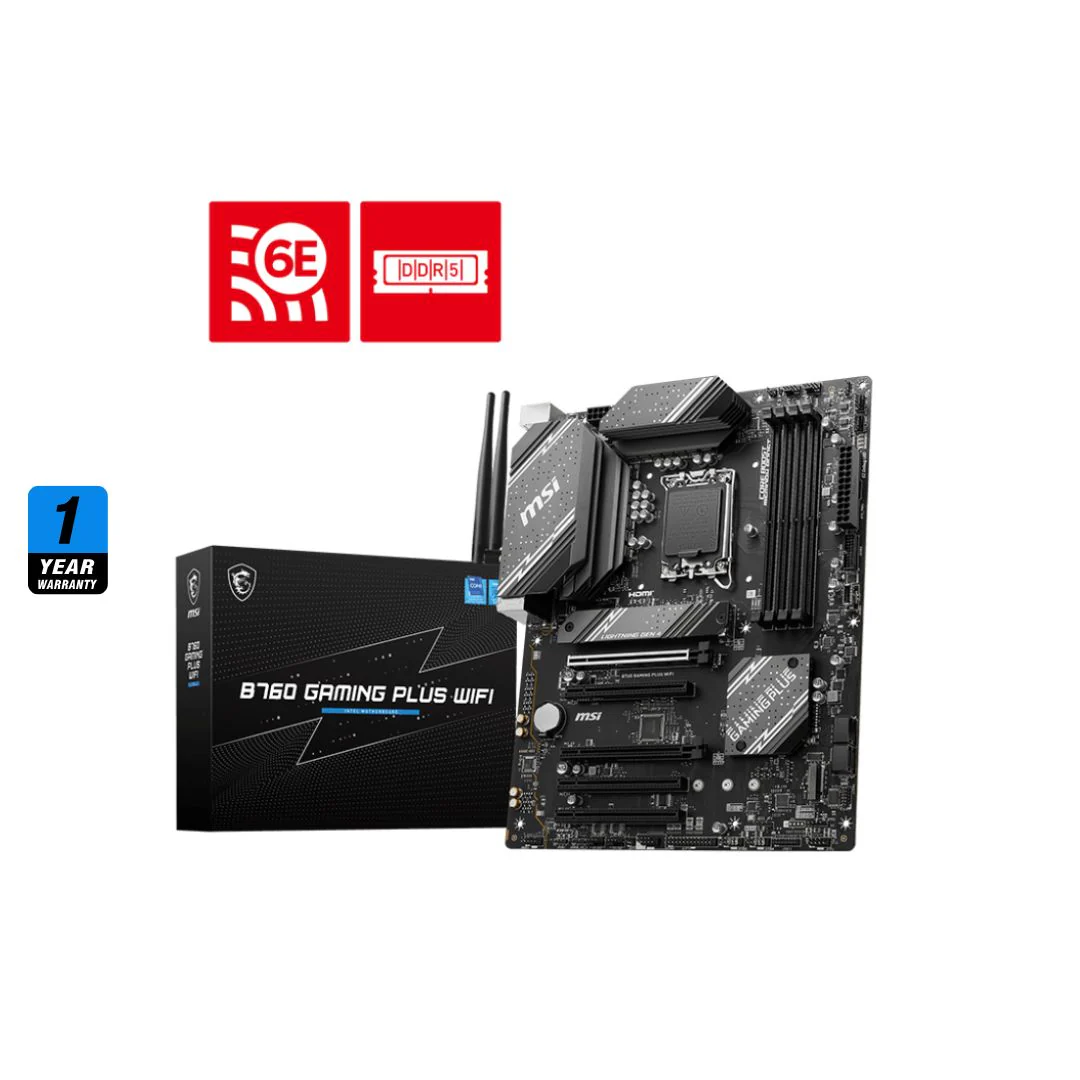

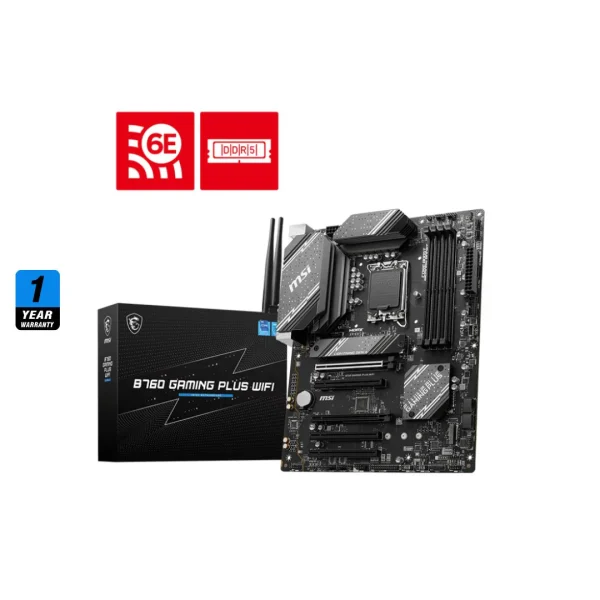

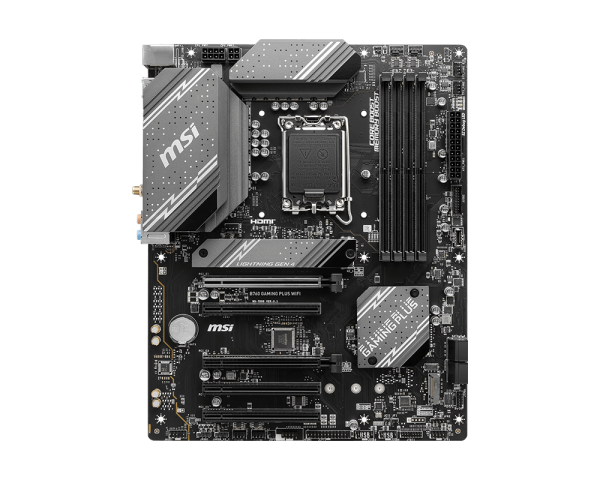

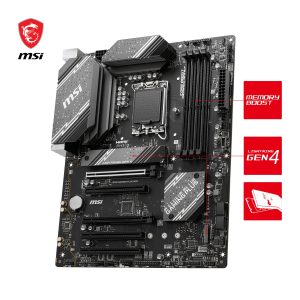

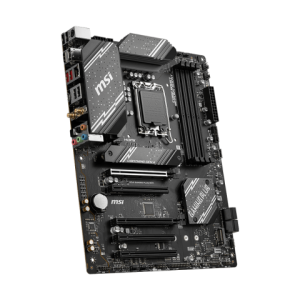

Name: MSI B760 GAMING PLUS WIFI
SKU: 4746
Availability: OutOfStock

Motherboard Specification
Processor Support :- Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron® Processors (LGA 1700)
Chipset :- Intel B760
Memory Support :- 4x DDR5, up to 256GB, up to 6800+ MHz (OC), Dual-Channel, Intel® XMP 3.0, Non-ECC Unbuffered
Graphics Ports :- 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz) (requires CPU with integrated graphics)
Expansion Slots :- 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x PCIe 4.0 x4, 2x PCIe 3.0 x1
Storage :- 2x M.2 (PCIe 4.0 x4 / SATA), 4x SATA 6Gb/s, RAID 0/1/5/10
Ethernet :- Realtek® RTL8125BG 2.5G LAN
Wireless & Bluetooth :- Intel® Wi-Fi 6E, Bluetooth® 5.3
USB :- Rear: 4x USB 2.0, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C | Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
Audio :- Realtek® ALC897, 7.1-Channel HD Audio, S/PDIF Out
Internal I/O Connectors :- 1x 24-pin ATX, 2x 8-pin CPU Power, 1x CPU Fan, 1x Pump Fan, 5x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JLPT, 1x JCOM, 2x JARGB_V2, 1x JRGB, 1x TPM

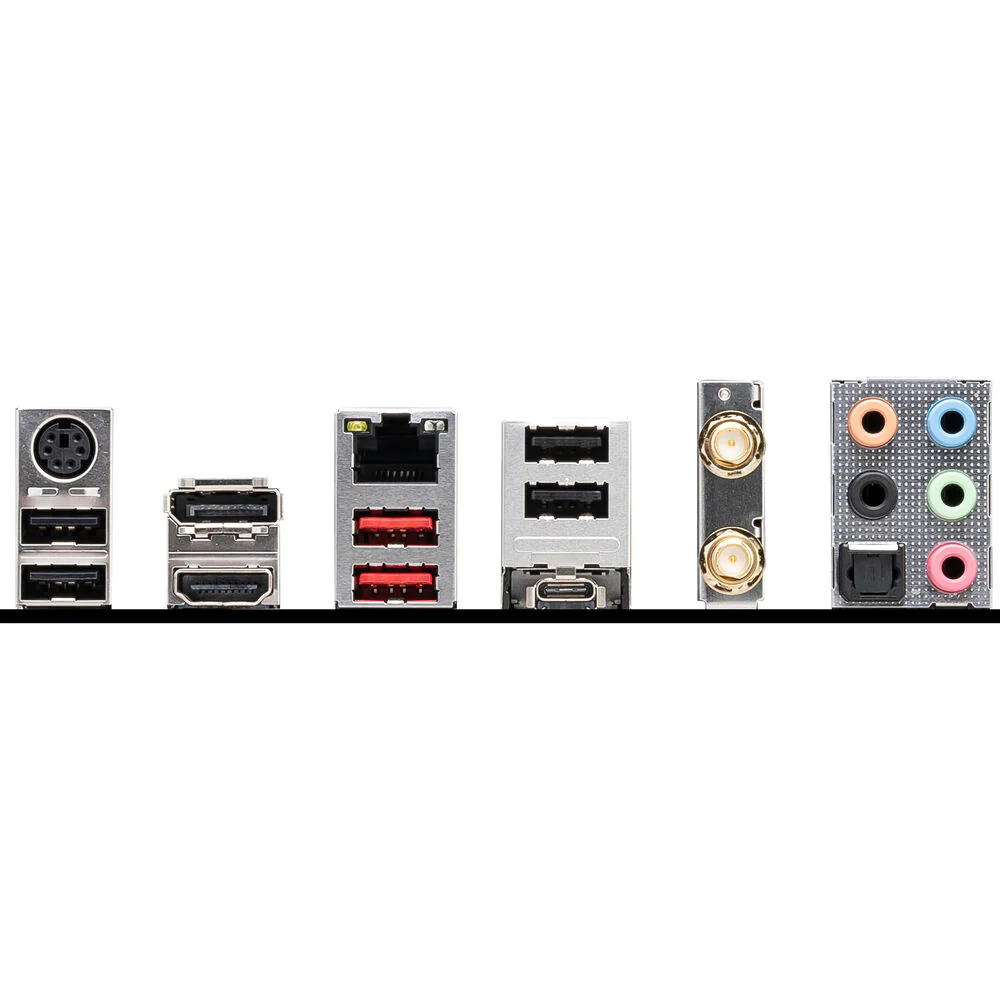

Back Panel I/O Ports :- 1x HDMI™, 1x DisplayPort, 2.5G LAN, 4x USB 2.0, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, Audio Jacks, S/PDIF Out, Wi-Fi / Bluetooth Antenna
Form Factor :- ATX

MSI B760 GAMING PLUS WIFI
