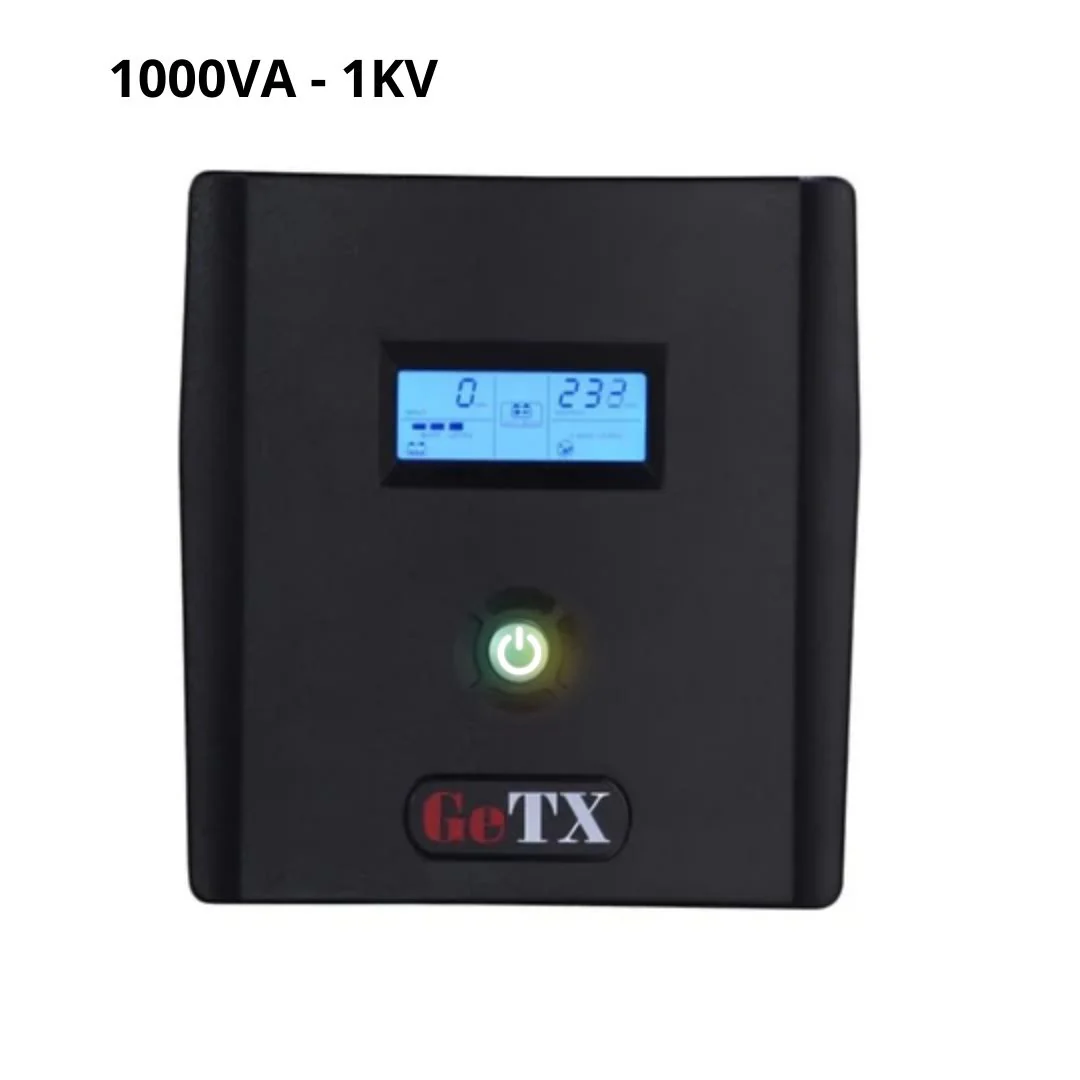

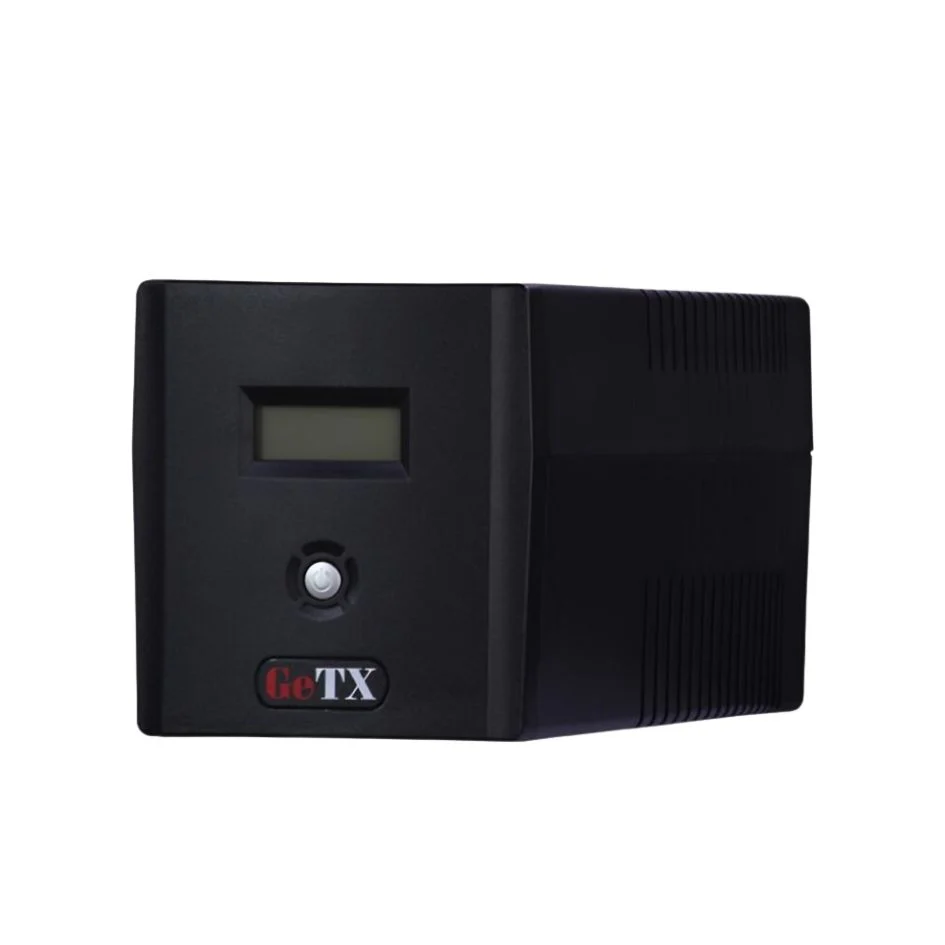

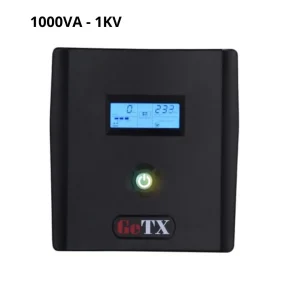

UPS GeTX GXK-1000-C (1000VA), Line interactive, LCD Battery 12v-7a *2

Key Features:

• Line Interactive UPS with simulated sinewave output
• Excellent microprocessor control guarantees high reliability (Internal self-diagnostic technology)
• Boost and buck AVR for voltage stabilization (wide input range with two boost and one buck control)
• Auto restart while AC is recovering
• Cold start function

Model: GXK-1000-C



Capacity (VA/Watts):

• Input Voltage: 220/230/240Vac
• Voltage Range: 140~300Vac
• Frequency Range: 50/60Hz (auto sensing)

Output:

• AC Voltage Regulation (Batt. Mode): ±10%
• Frequency Range (Batt. Mode): 50/60Hz ±1 Hz
• Transfer Time: Typical 4-8ms
• Waveform (Batt. Mode): Simulated Sinewave

Battery:

• Battery Voltage: 24Vdc
• Battery Type & Number
• Typical Recharge Time: 6~8 hours recover to 90% capacity

Indicators:

• LED Display(LED version): AC Mode, Battery Mode, Overload, Fault
• LCD Display(LCD version): AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low

Protection:

• Full Protection: Short circuit, Overload, Overcharge, and overdischarge protection

Alarm:

• Battery mode: Sounding every 10 seconds
• Low Battery: Sounding every second
• Overload: Sounding every 0.5 second
• Battery Replacement Alarm: Sounding every 2 seconds
• Fault: Continuously sounding

Management:

• Communication port: USB or RS232 (Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC)

Operating Environment:

• Humidity: 0-90 % RH @ 0- 40°C (non-condensing)
• Noise Level: Less than 45dB

Physical:

• Approx. Dimension D * W * H (mm): 314130175
• Approx. Net Weight (kgs): 7.2
