Seasonic FOCUS GX-1000 Black, 1000W 80+ Gold, Full Modular

Power Supply Specification

• Power Watt: 1000 W
• Efficiency Rating: 80PLUS® Gold
• Modular: Fully Modular

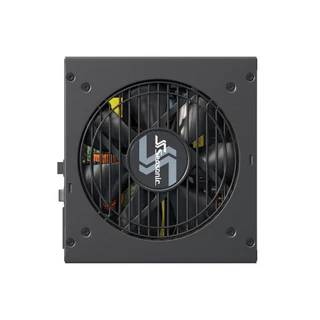

• Fan Size: 120 mm
• Fan Bearing: Fluid Dynamic Bearing
• Dimensions (DxWxH): 140 × 150 × 86 mm
• PFC Type: Active PFC (Power Factor Correction)
• Input Voltage Range: 100 V – 240 V
• Protection: OPP, OVP, UVP, OCP, OTP, SCP

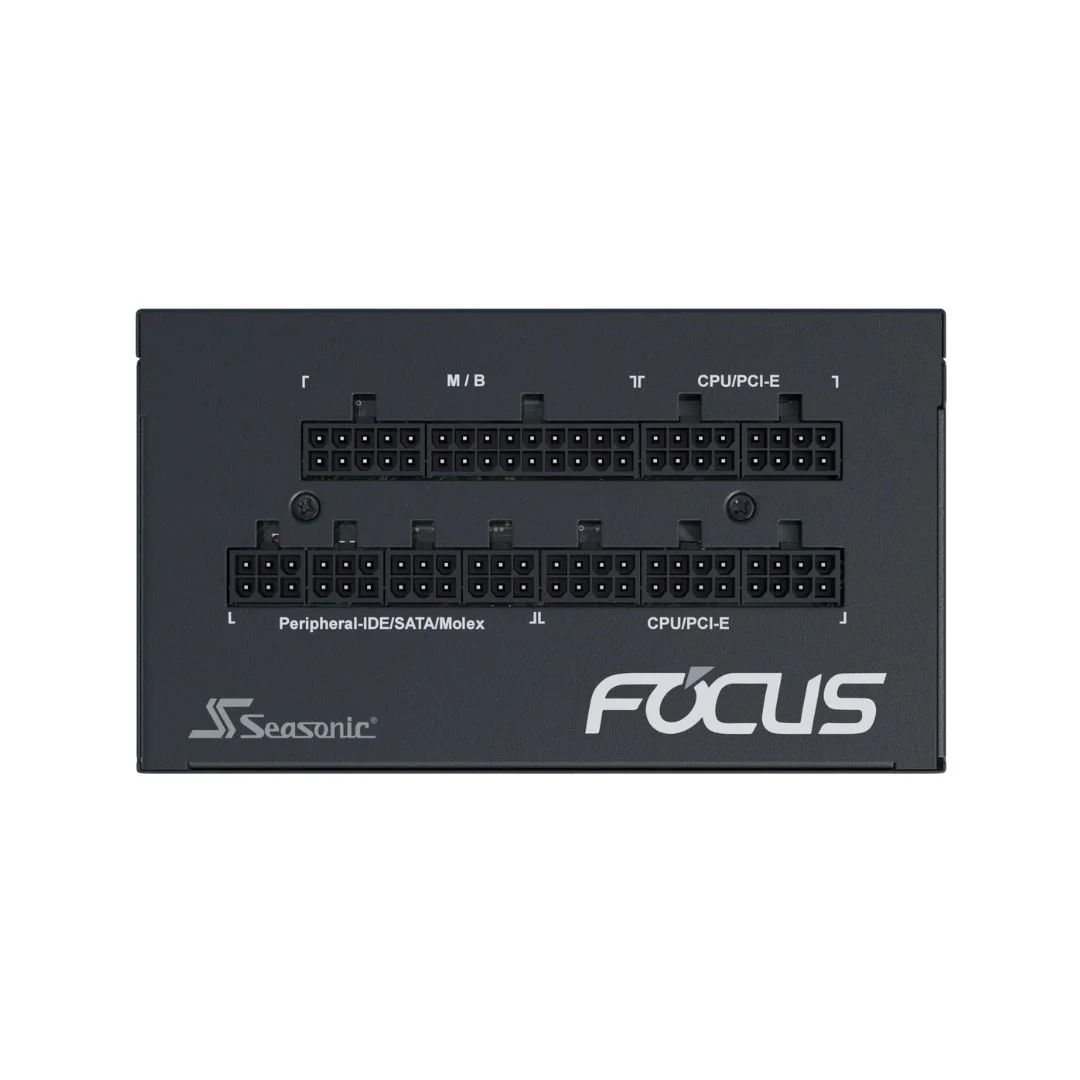

• ATX (24 pin): 1 connector, 1 cable (610 mm)
• EPS (4+4 pin): 1 connector, 2 cables (650 mm)
• PCI-E (6+2 pin): 2 connectors, 3 cables (750 mm)
• SATA (15 pin): 4 connectors, 1 cable (810 mm), 4 connectors, 1 cable (860 mm), 2 connectors, 1 cable (450 mm)
• MOLEX (4 pin): 3 connectors, 1 cable (690 mm), 2 connectors, 1 cable (470 mm)
• 12VHPWR (12+4 Pins to 12+4 Pins): 1 connector, 1 cable (750 mm)
