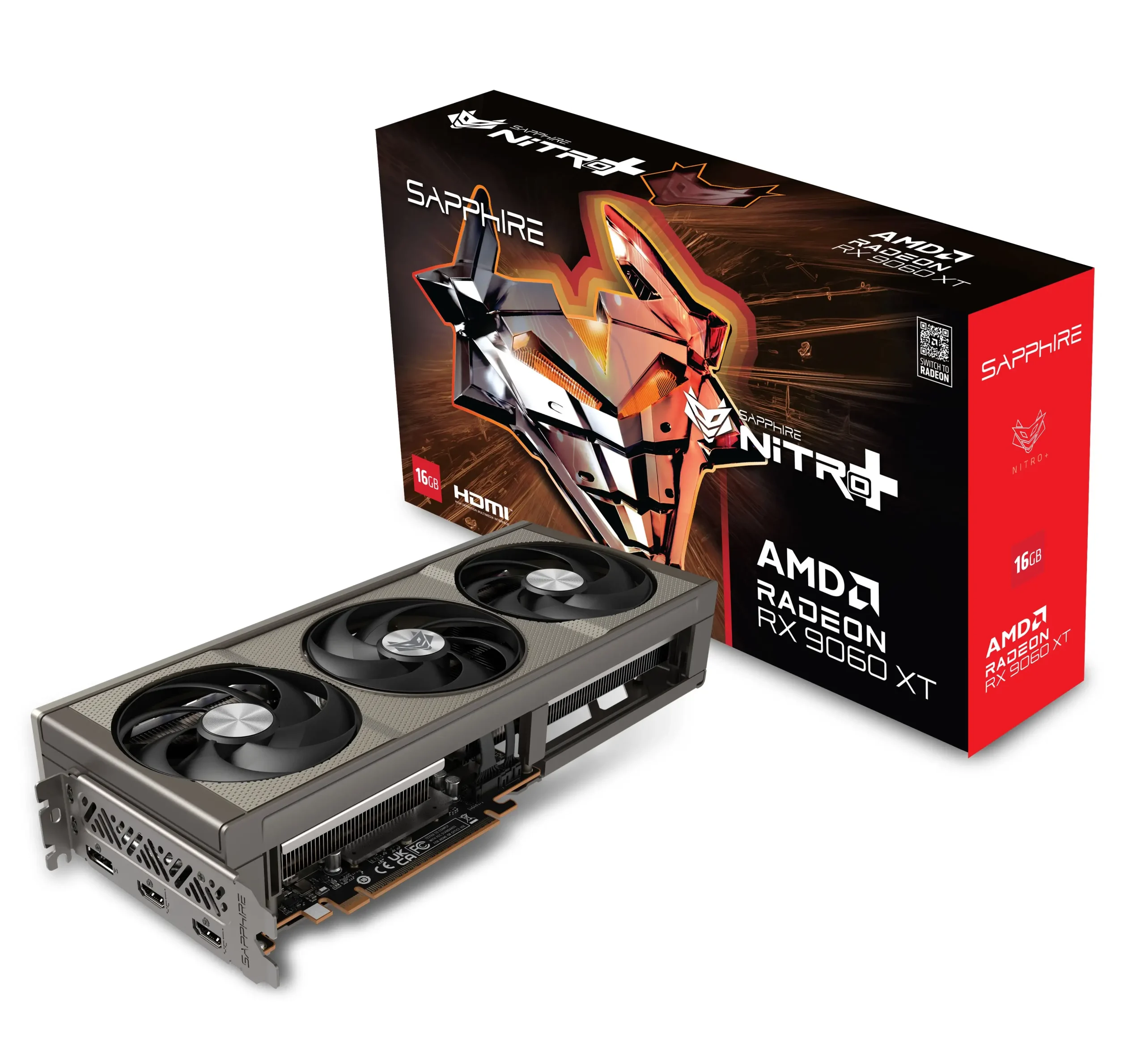

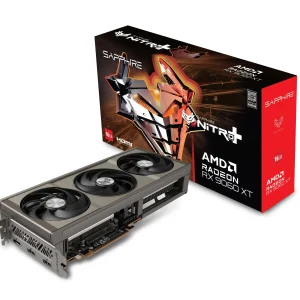

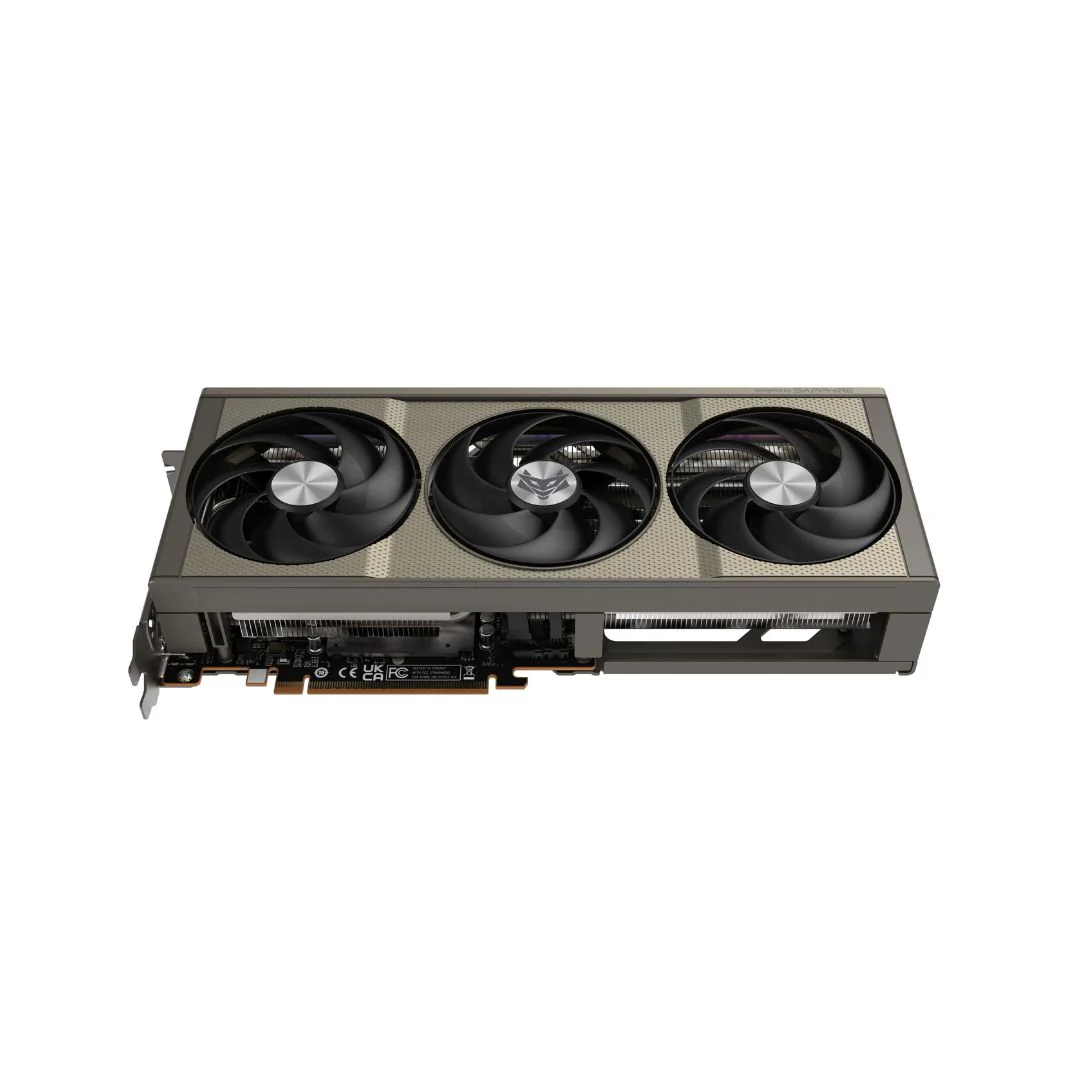

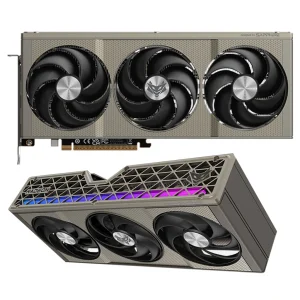

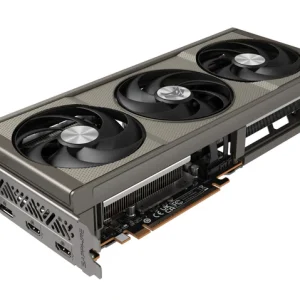

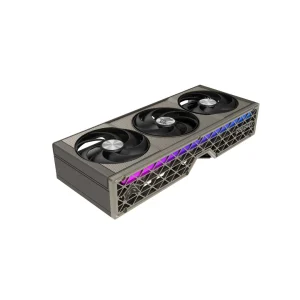

Name: SAPPHIRE RX9060XT 16GB NITRO+ OC
SKU: 4632
Availability: InStock

GPU

AMD Radeon™ RX 9060 XT Graphics Card
AMD RDNA™ 4 Architecture

Engine Clock

Boost Clock: Up to 3320 MHz
Game Clock: Up to 2780MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

2048

Compute Units

32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

32MB

Ray Accelerators

AI Accelerator

Memory Size/Bus

16GB/128 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 3 Displays

Resolution

HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

2x HDMI®
1x DisplayPort™ 2.1a

BIOS Support

UEFI

Game Index

1440P

Sapphire Features

Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipes
Metal Backplate
ARGB Light Bar
Fan Quick Connect
Two-Ball Bearing Fans
Premium 9-Phase Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
Performance vs. Efficiency Quicksets
Glow!
Fan Check
TriXX Boost
External RGB LED MB Synchronization

Accessories Bundled

L-Shape Support Bracket
3pin 5V ARGB Cable

AMD Features

AMD RDNA™ 4 Architecture
32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
AMD HYPR-RX with AFMF 2
AMD FidelityFX™ Super Resolution 4 with AI Upscaling
DisplayPort™ 2.1a
AMD Radiance Display™ Engine
AMD Fluid Motion Frames 2 technology
AMD Radeon™ Anti-Lag 2 technology
AV1 Encode/Decode
AMD FidelityFX™ technologies
Microsoft® DirectX® 12 Ultimate
AMD Noise Suppression
AMD Freesync™ technology
AMD Infinity Cache
16 GB of GDDR6 on 128-bit Memory Bus
AMD smart technologies
AMD Software: Adrenalin Edition™ application

Cooler Type

Tri-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimized Composite Heatpipes
Two-Ball Bearing

Form Factor

2.7 slot, ATX
Dimension: 300(L)X 131(W)X 55(H)mm

Power Consumption

182W Typical Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit operating system required

System Requirement

Minimum 450 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
