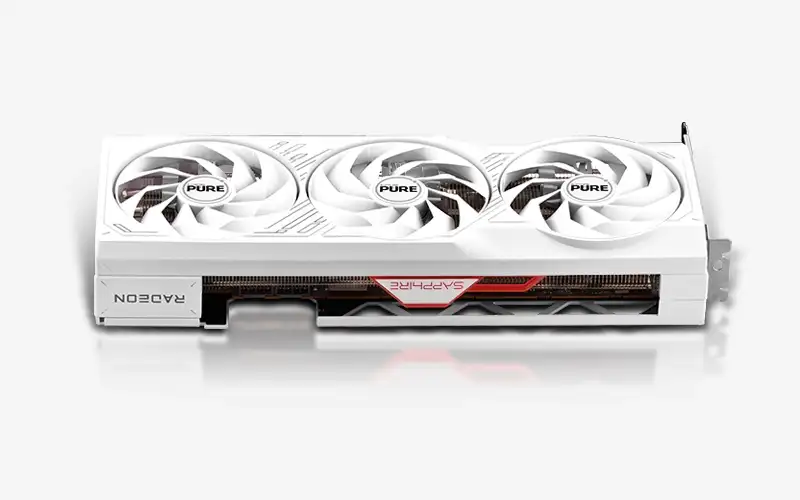

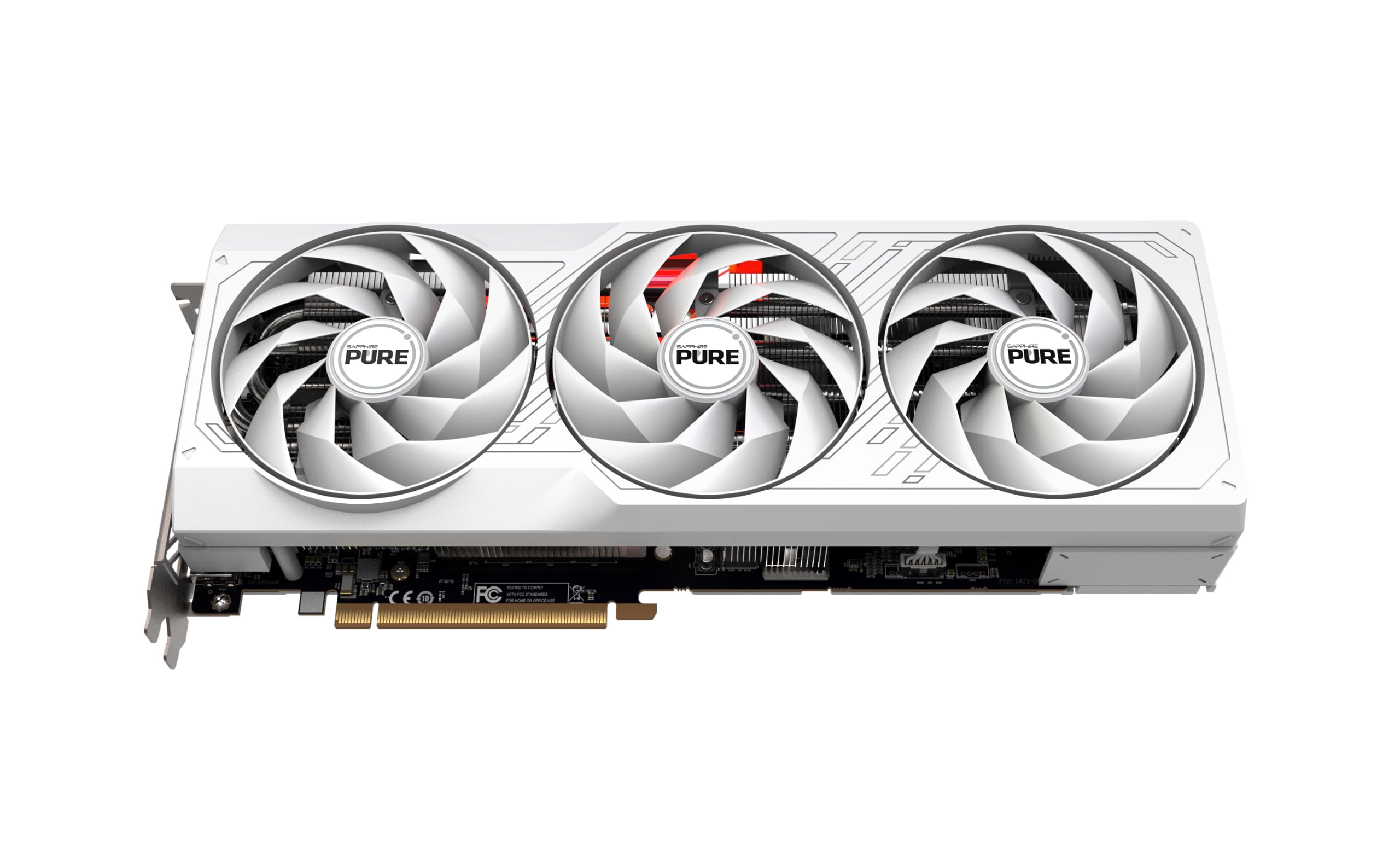

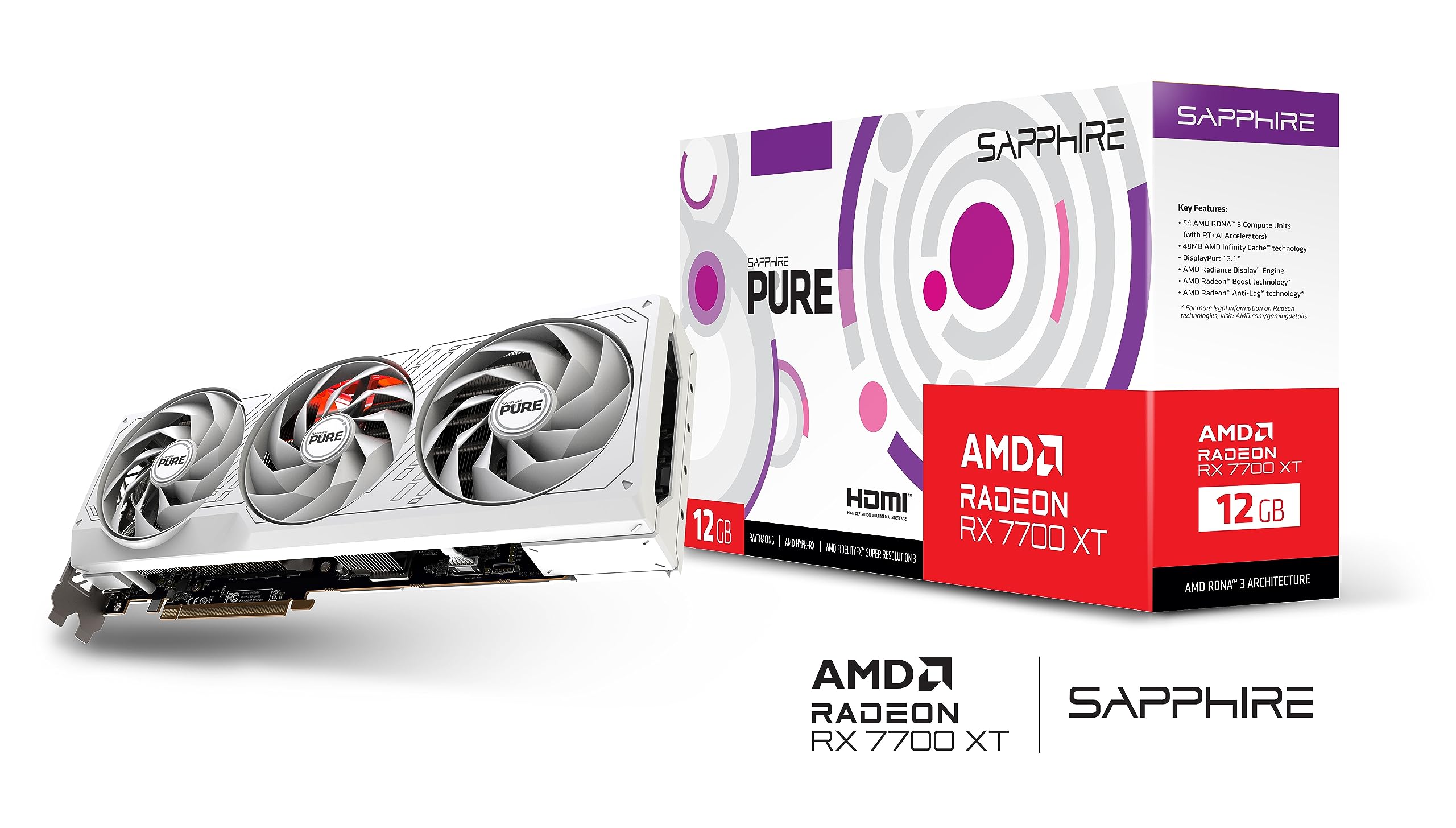

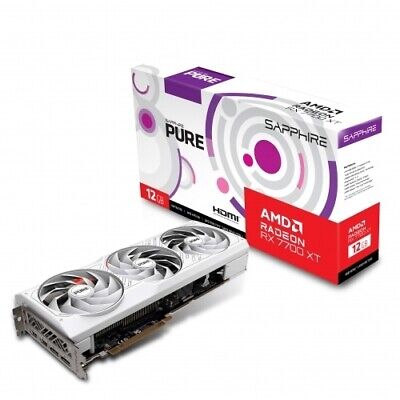

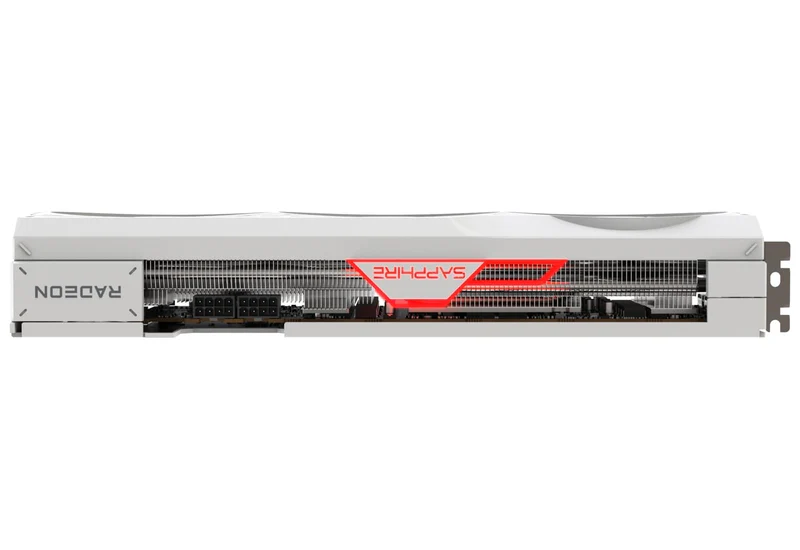

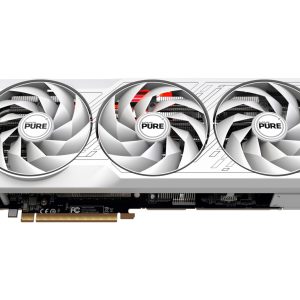

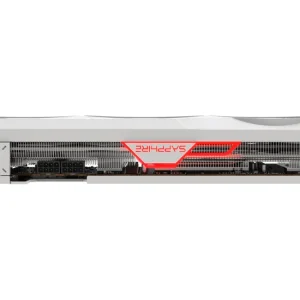

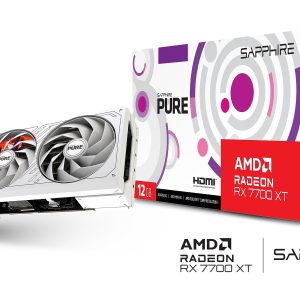

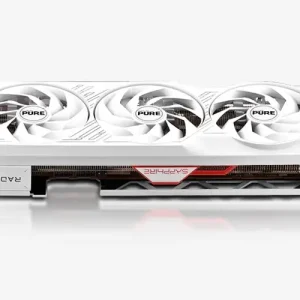

Name: SAPPHIRE RX7700XT 12GB PURE OC
SKU: 4619
Availability: InStock

GPU

AMD Radeon™ RX 7700 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture

Engine Clock

Boost Clock: Up to 2584 MHz
Game Clock: Up to 2226MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3456

Compute Units

54 CU (with RT+AI Accelerators)

Infinity Cache

48MB

Ray Accelerators

Memory Size/Bus

12GB/192 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

2x HDMI
2x DisplayPort

BIOS Support

UEFI

Game Index

1440P

Sapphire Features

Premium Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipe
Intelligent Fan Control
Precision Fan Control

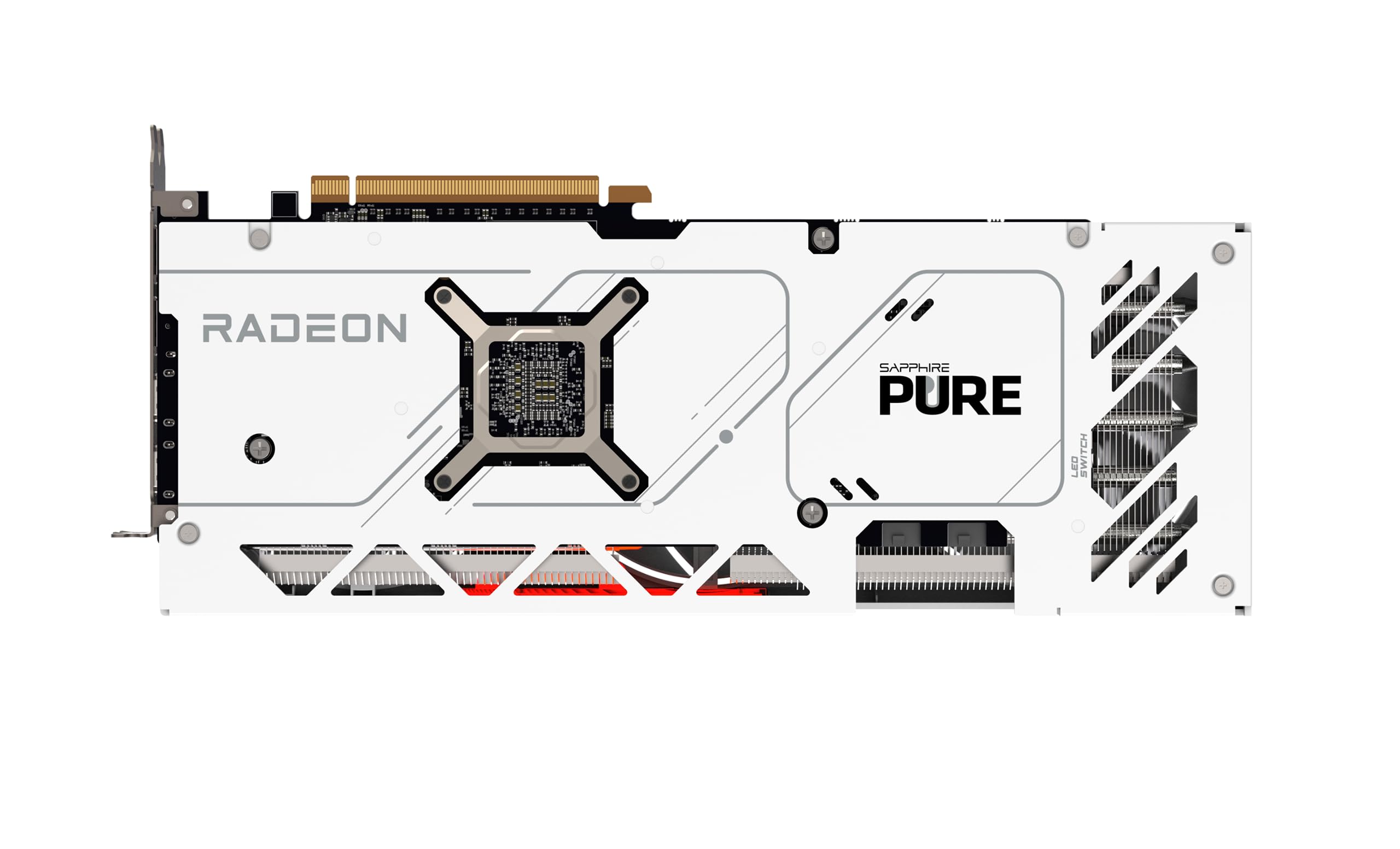

Metal Backplate
Red LED SAPPHIRE Logo
Two-Ball Bearing Fans
Angular Velocity Fan Blade
TriXX Supported
TriXX Boost

Accessories Bundled

Graphics Card Supporter

AMD Features

AMD RDNA™ 3 Architecture
54 AMD RDNA™ 3 Compute Units
48MB AMD Infinity Cache™ Technology
DisplayPort™ 2.1 Support
AMD Radiance Display™ Engine
12GB GDDR6 on 192-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ Super Resolution technology*
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software: Adrenalin Edition™
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD Link
AMD FreeSync™ Technology

Cooler Type

3 Fans

Form Factor

2.5 slot, ATX
Dimension: 320(L)X 128.75(W)X 52.57 (H)mm

Power Consumption

240W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit operating system required

System Requirement

Minimum 700 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
