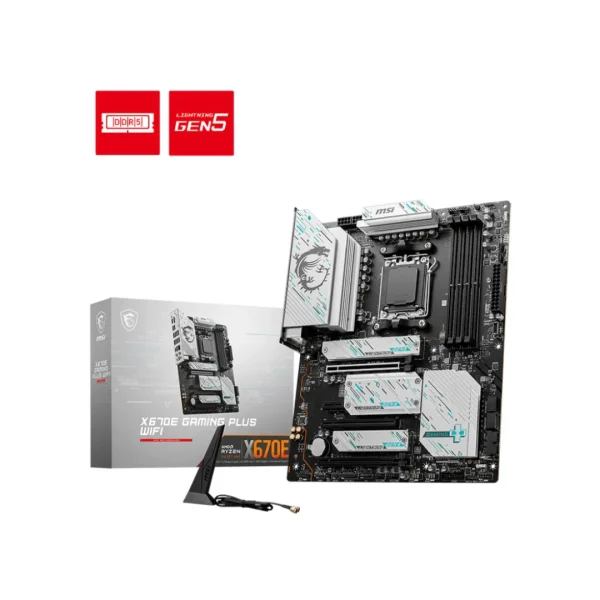

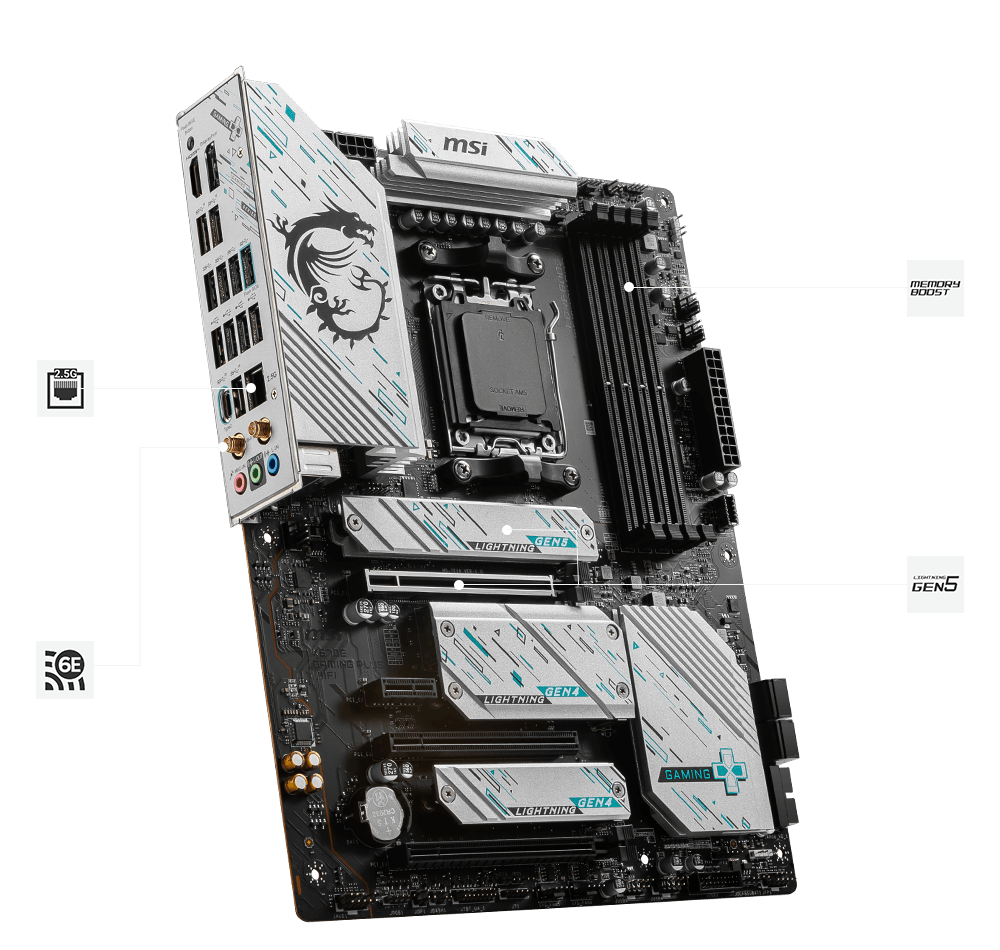

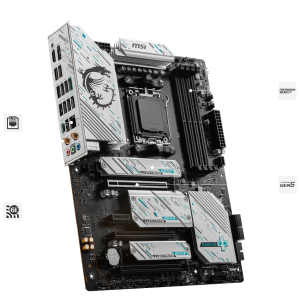

MSI X670E GAMING PLUS WIFI Motherboard

Motherboard Specification

• Model: MSI X670E GAMING PLUS WIFI
• Chipset: AMD X670E
• Socket: AM5 – Supports AMD Ryzen 7000, 8000, and 9000 Series processors
• Form Factor: ATX

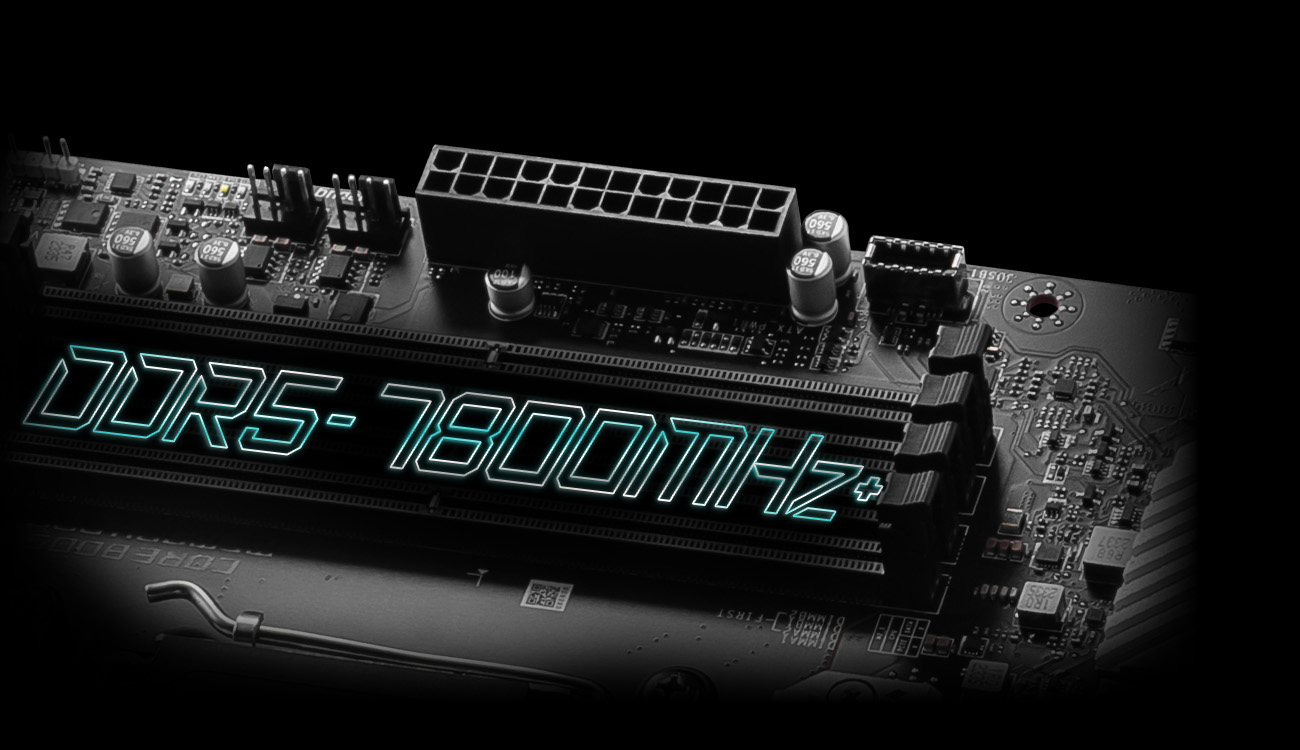

• Memory Support:
– 4 × DDR5 DIMM slots
– Up to 256GB, up to 7800+ MHz (OC)
– Dual Channel, AMD EXPO & XMP profiles
• Graphics Outputs: 1 × HDMI 2.1, 1 × DisplayPort 1.4
• Audio: Realtek ALC897 – 7.1 Channel HD Audio
• Expansion Slots:
– 1 × PCIe 5.0 x16
– 2 × PCIe 4.0 x16 (x4/x1 modes)
– 1 × PCIe 3.0 x1
• Storage:
– 4 × M.2 Gen5/Gen4 (with M.2 Shield Frozr)
– 4 × SATA III
– RAID 0/1/10 support
• Networking:
– Realtek RTL8125BG 2.5Gb LAN
– Wi-Fi 6E
– Bluetooth 5.3

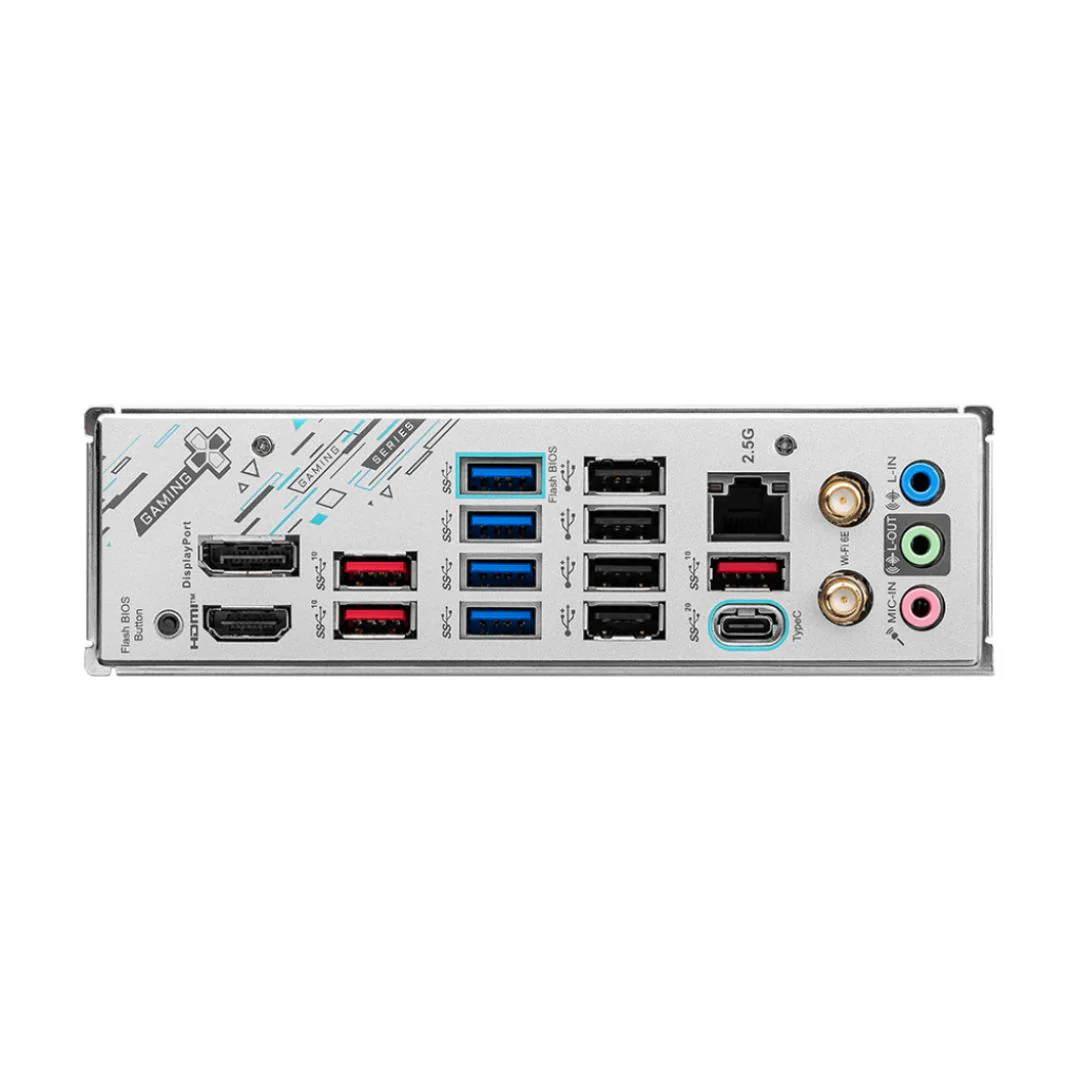

• USB Ports:
– Rear: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0
– Internal: USB 3.2 Gen 2 Type-C header, USB 3.2 Gen 1, USB 2.0 headers
• Cooling & Features:
– 14+2+1 Duet Rail Power System (80A SPS)
– Extended VRM heatsinks, 7W/mK thermal pads
– M.2 Shield Frozr, chipset heatsink
– 6 × PWM fan headers, AIO pump header
– Core Boost, Memory Boost, Performance Switch
– BIOS FlashBack, EZ Debug LEDs
• RGB: 2 × ARGB headers, 2 × RGB headers – Mystic Light support
• OS Support: Windows 11 / Windows 10 64-bit
