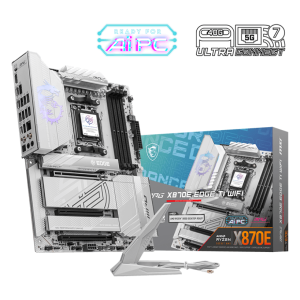

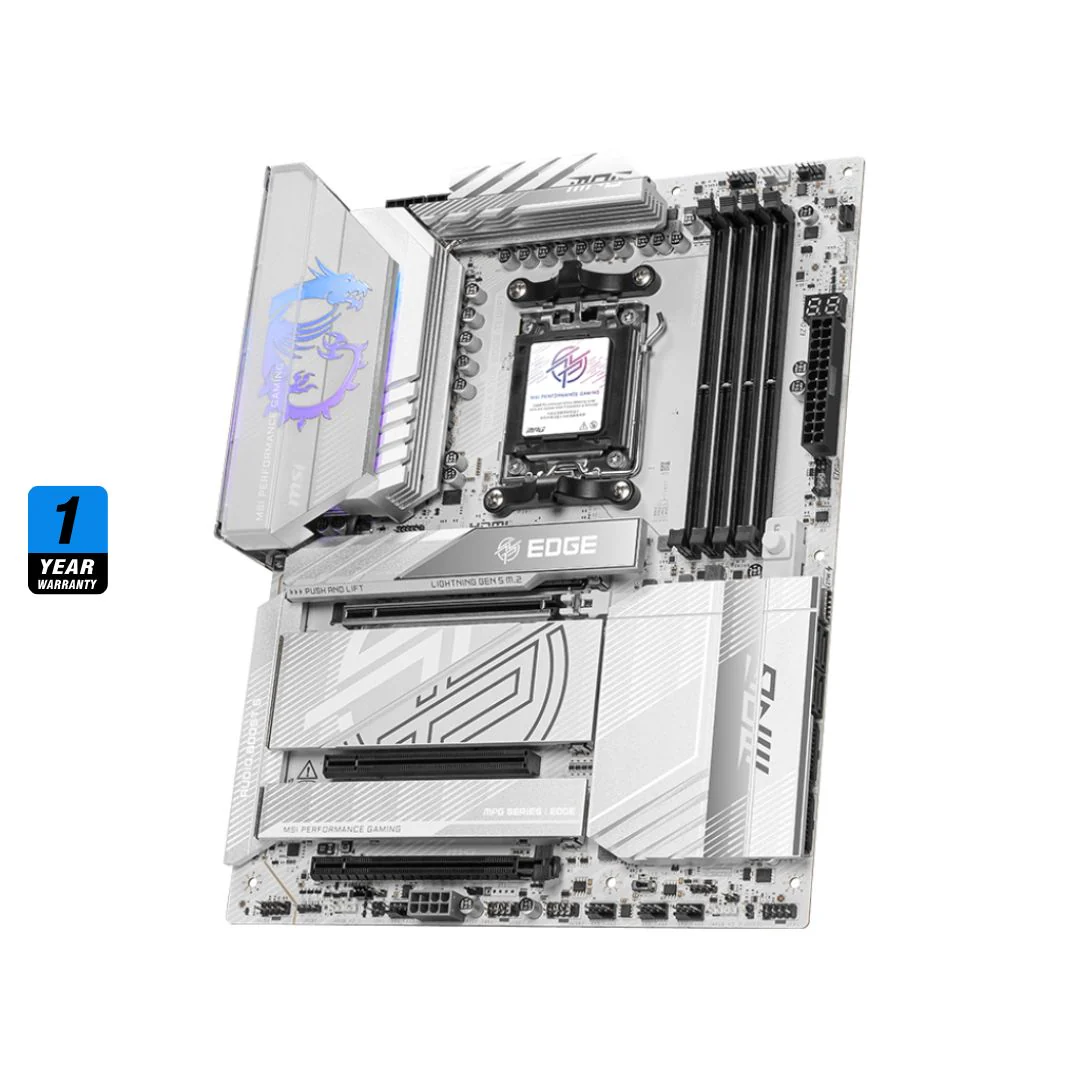

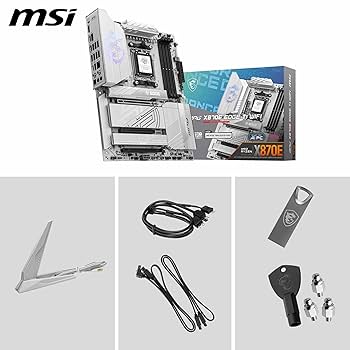

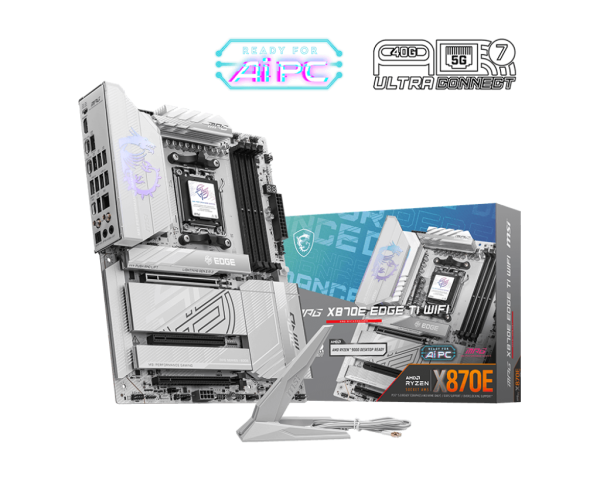

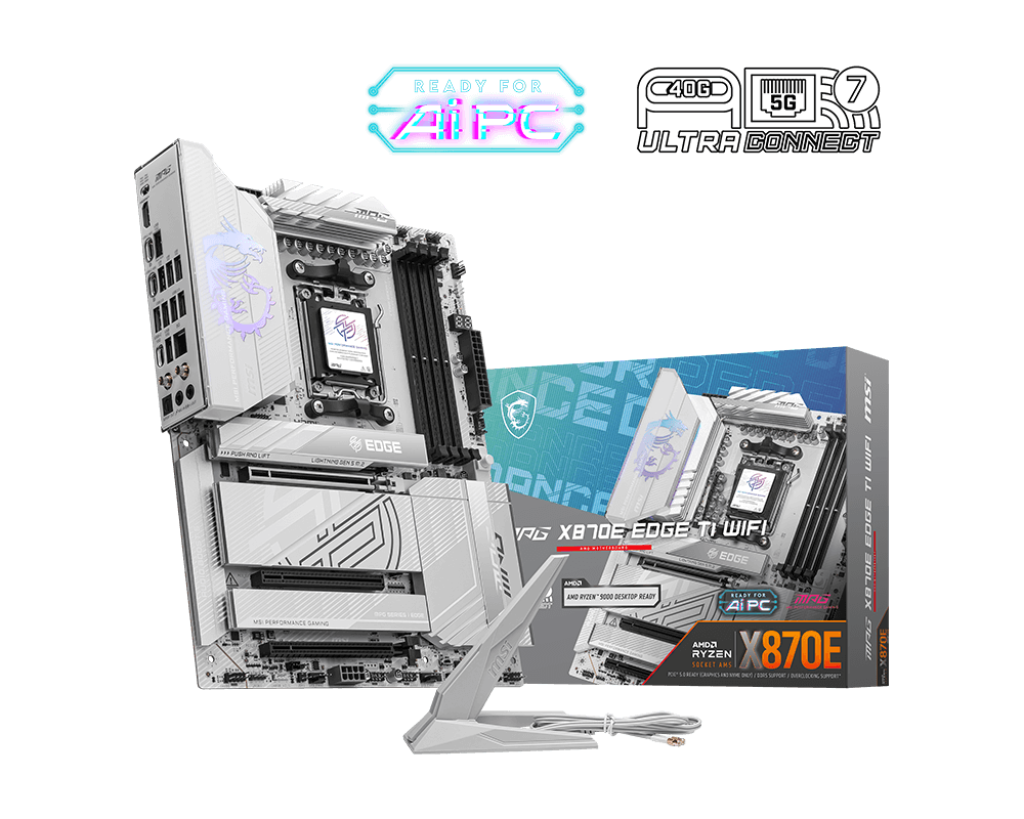

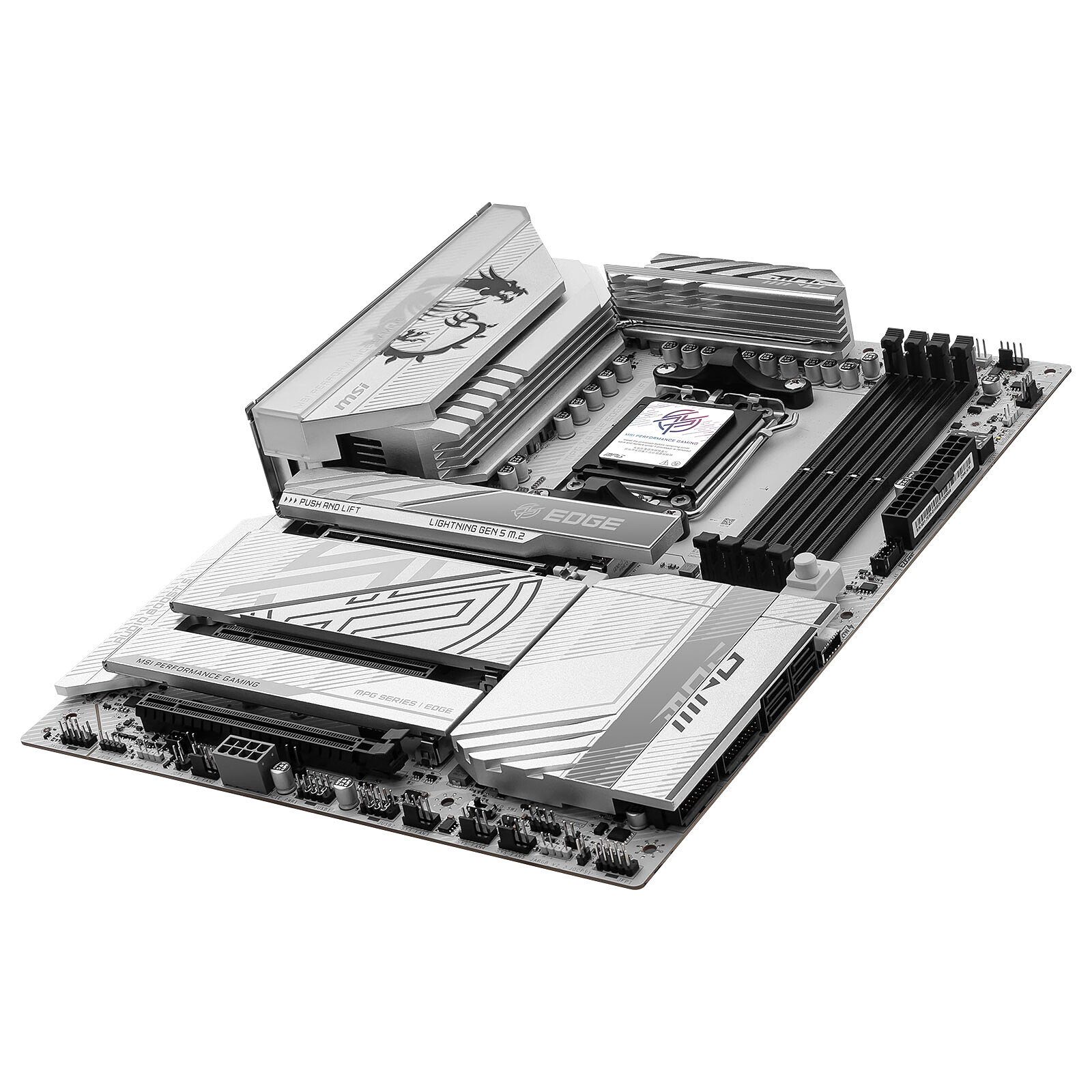

MSI MPG X870E EDGE TI WIFI , Motherboard

Motherboard Specification

• Chipset: AMD X870E
• Socket: AM5 – Supports AMD Ryzen 9000 / 8000 / 7000 Series processors
• Form Factor: ATX
• Memory Support: 4 x DDR5 DIMM slots, up to 256GB, up to 8400+ MT/s (OC), Dual Channel, AMD EXPO / XMP
• Graphics Outputs: 1 x HDMI 2.1
• Audio: Realtek ALC4080 – 7.1 Channel HD Audio, Audio Boost 5, S/PDIF out

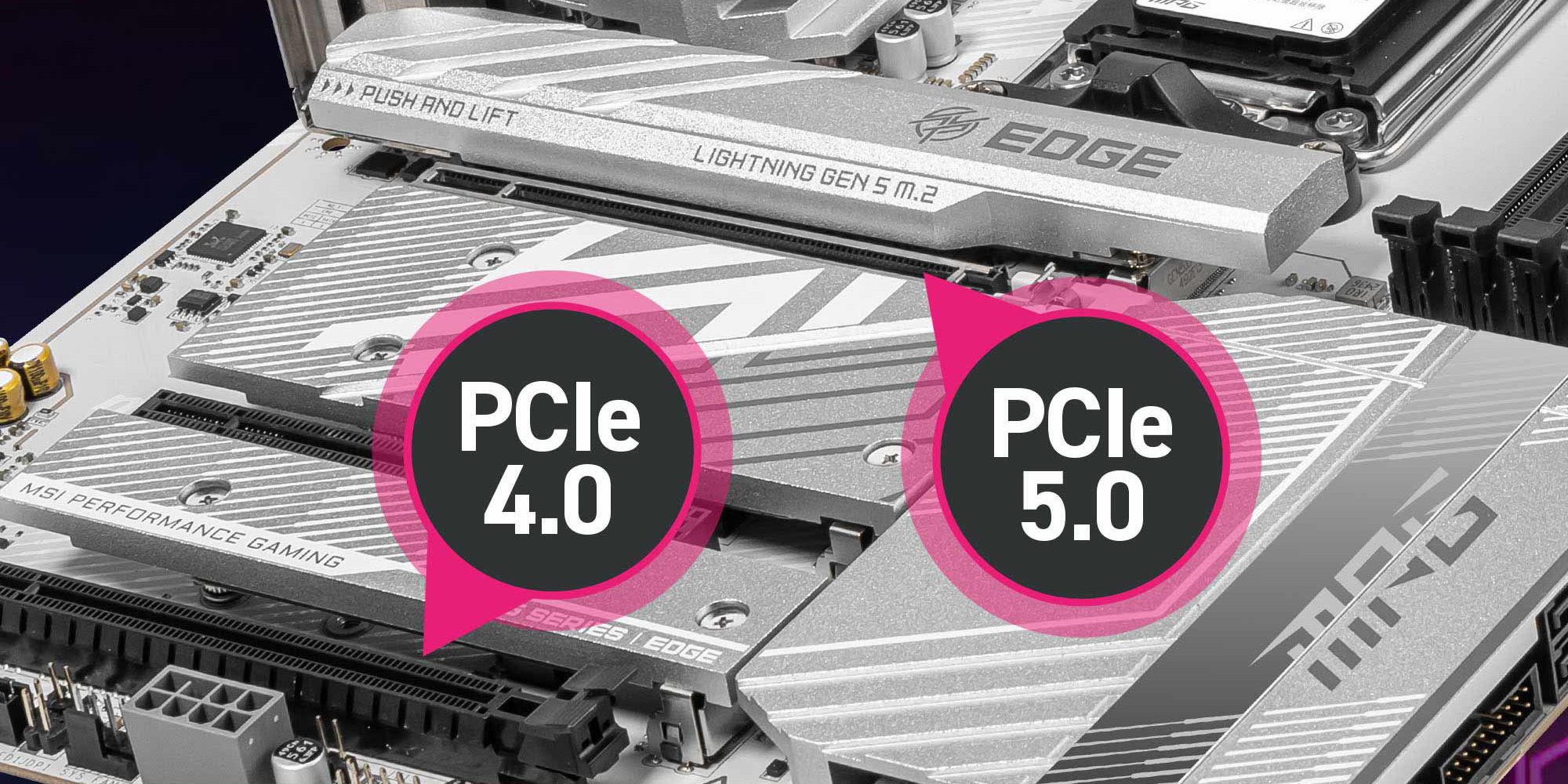

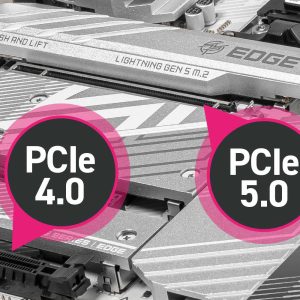

• Expansion Slots:
– 1 x PCIe 5.0 x16
– 1 x PCIe 4.0 x4
– 2 x PCIe 3.0 x1
• Storage:
– 4 x M.2 (2 x PCIe 5.0 x4, 2 x PCIe 4.0 x4)
– 4 x SATA III
– RAID 0/1/10 support
• Networking:
– Realtek 5GbE LAN
– Wi-Fi 7
– Bluetooth 5.4

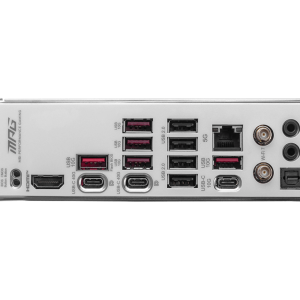

• USB Ports:

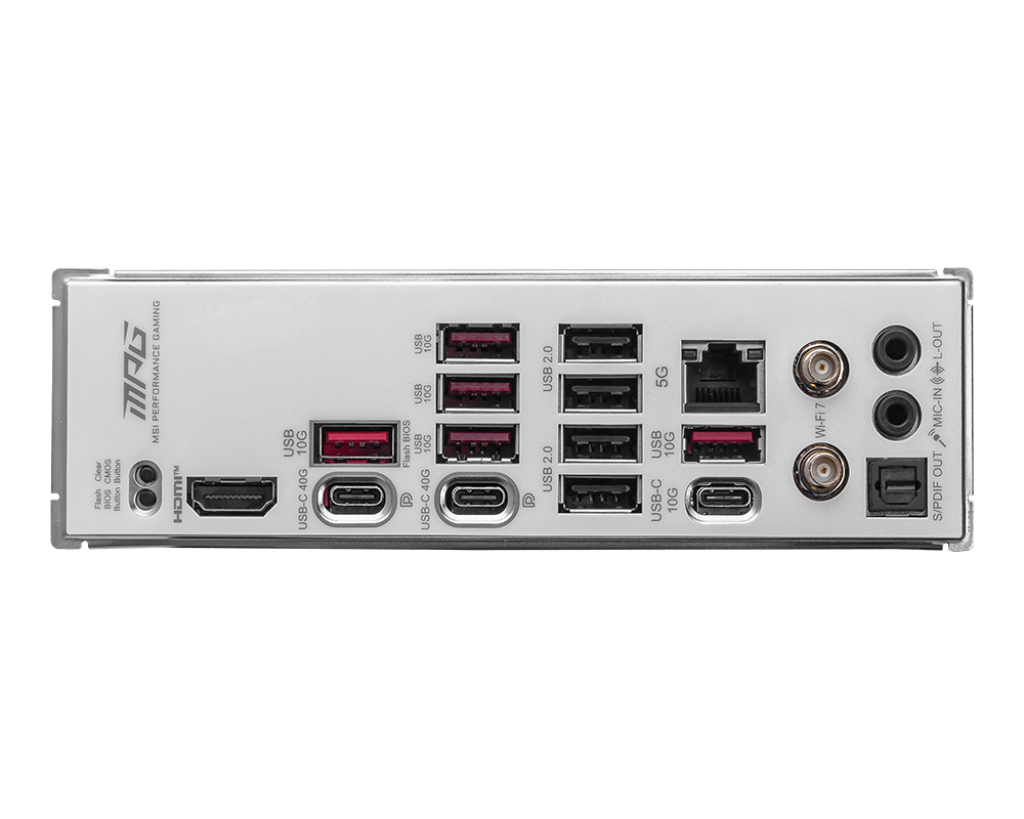

– Rear: 2 x USB4 Type-C (40Gbps), USB 10Gbps, USB 5Gbps, USB 2.0
– Internal: USB 20Gbps Type-C header, USB 5Gbps, USB 2.0
• Cooling & Features:

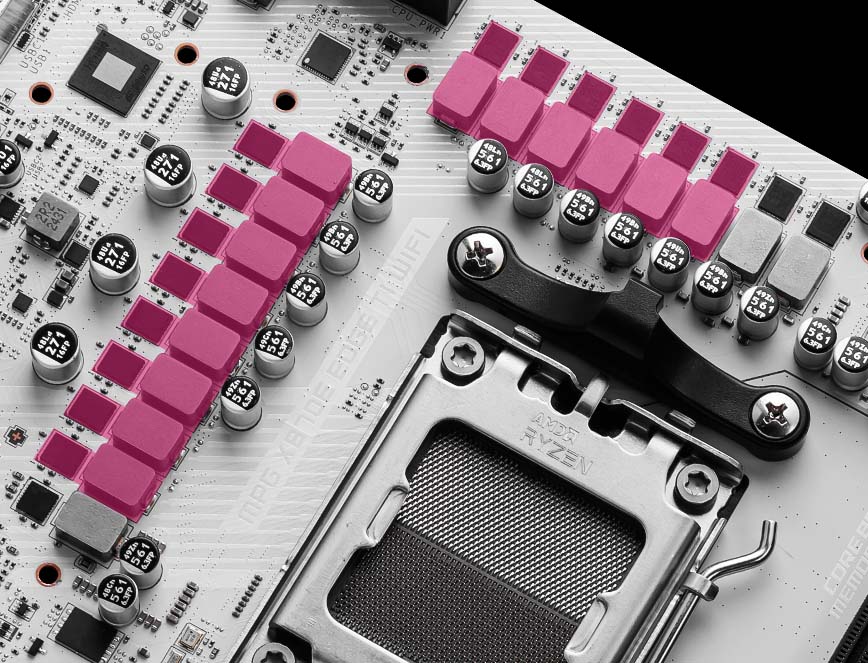

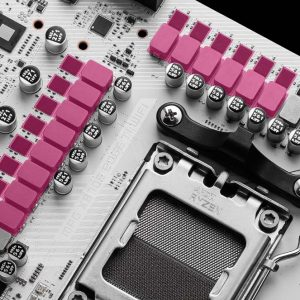

– 14+2+1 Duet Rail Power System (80A SPS)
– Extended VRM Heatsinks, 7W/mK thermal pads

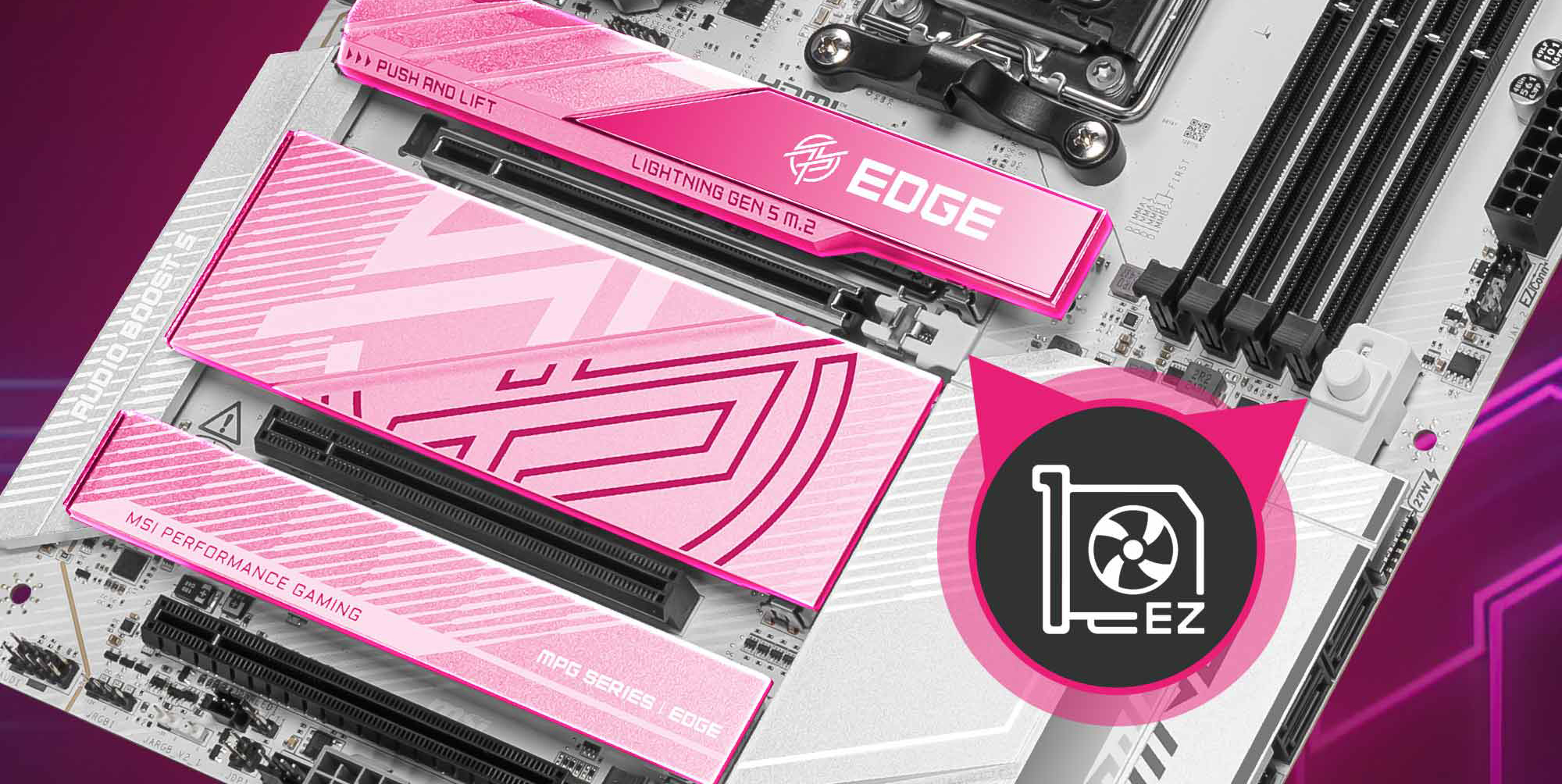

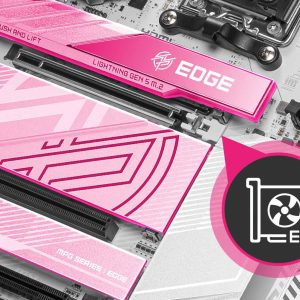

– EZ M.2 Shield Frozr II, EZ M.2 Clip II

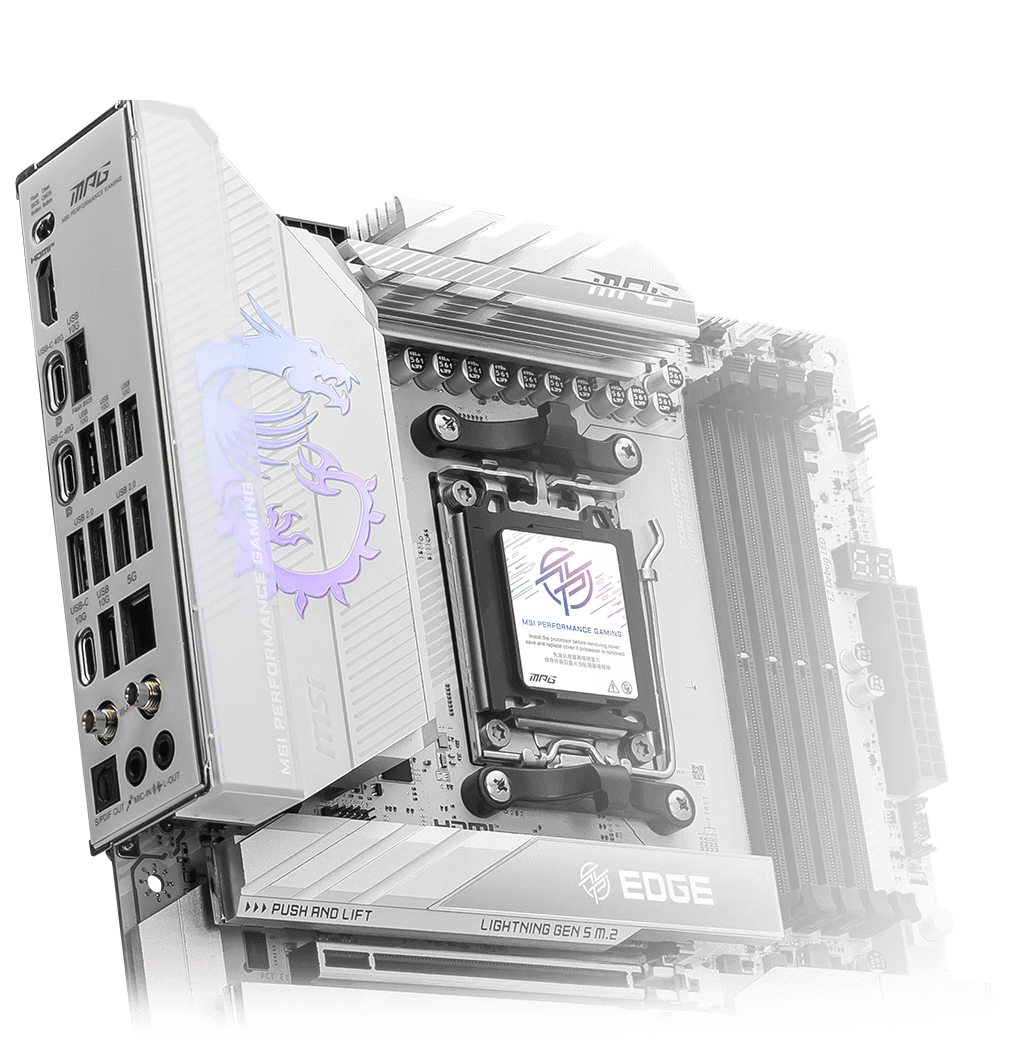

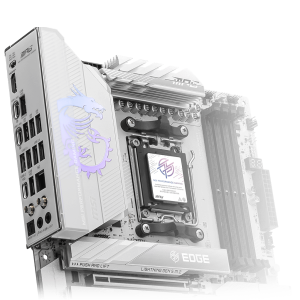

– Steel Armor II, Debug LED, Pre-installed I/O Shield
• OS Support: Windows 11 / Windows 10 64-bit
