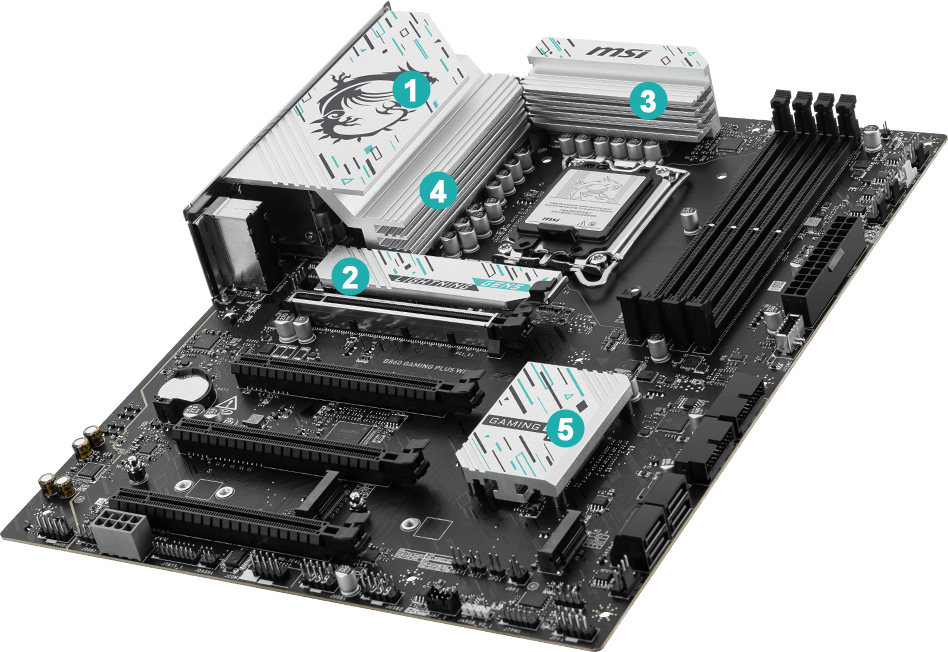

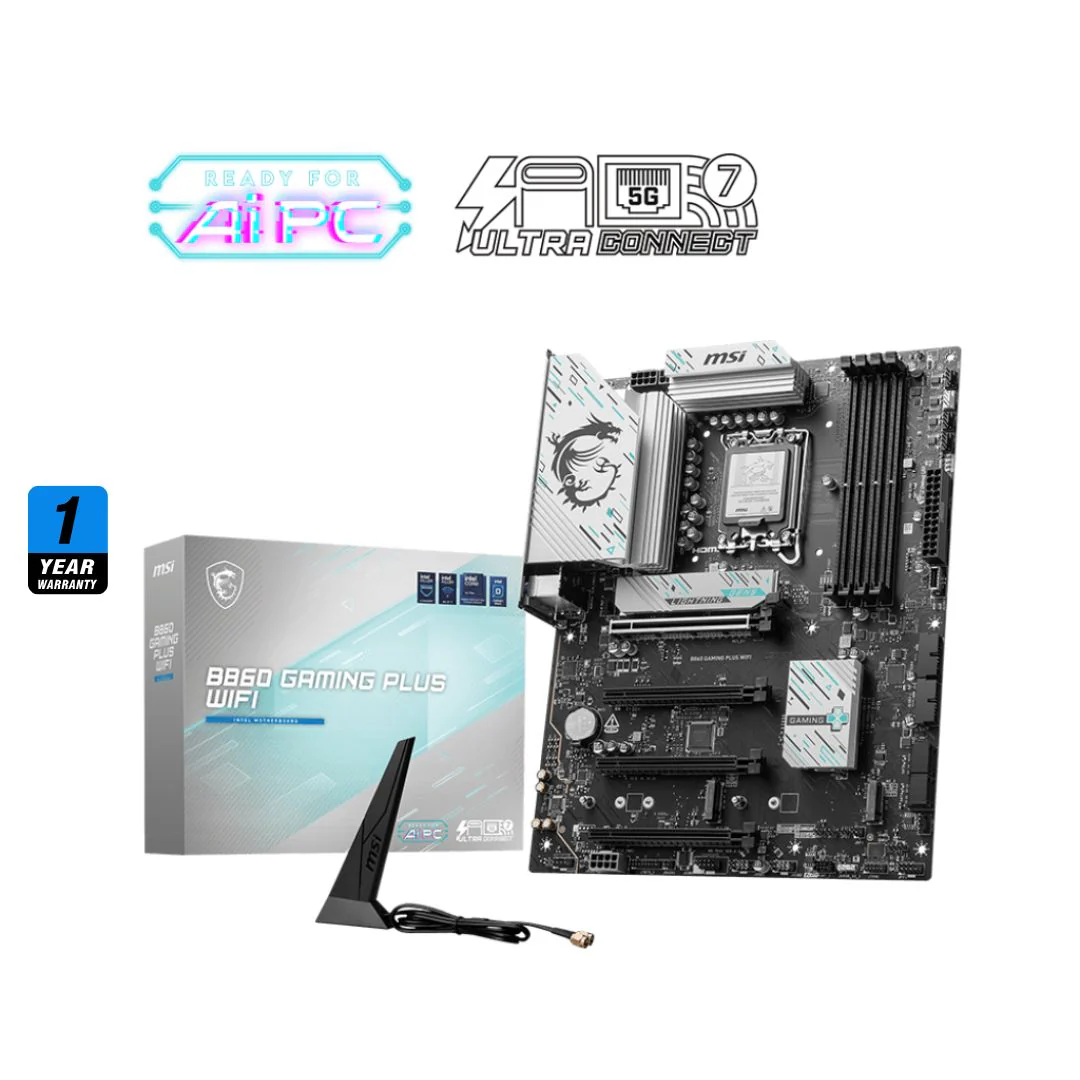

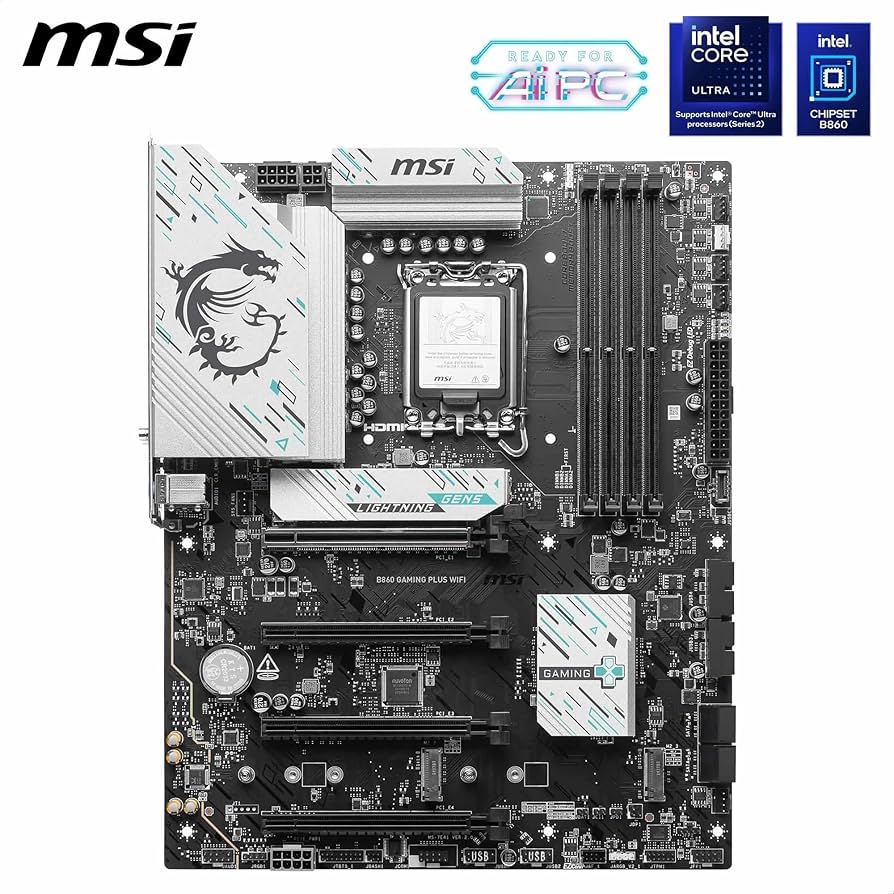

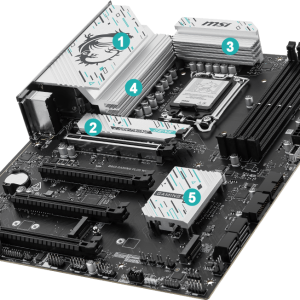

MSI B860 GAMING PLUS WIFI , Motherboard

Motherboard Specification

• Processor Support: Intel® Core™ Ultra , LGA 1851
• Chipset: Intel® B860
• Memory Support: 4× DDR5, up to 256GB, speeds up to 8800+ MT/s (OC), Dual-Channel, Intel® XMP 3.0
• Graphics Ports: 1× HDMI 2.1, 1× DisplayPort 1.4, 1× Type-C (DP 2.1 over Thunderbolt 4)
• Expansion Slots: 4× PCIe x16 (Gen5/Gen4), 1× PCIe x1
• Storage: 3× M.2 (PCIe Gen5/Gen4), 4× SATA 6Gb/s, RAID 0/1/5/10
• Ethernet: Intel® Killer™ E5000 5Gbps LAN
• Wireless & Bluetooth: Intel® Killer™ BE1750x Wi-Fi 7, Bluetooth® 5.4
• USB: 4× USB 2.0, 6× USB 5Gbps, 3× USB 10Gbps, 1× USB 20Gbps (Thunderbolt 4)
• Audio: Realtek® ALC897, 7.1 HD Audio
• Internal I/O Connectors: 3× Power, 6× Fan, 2× ARGB, 1× RGB, TPM, COM, USB headers, Thunderbolt 5 card header

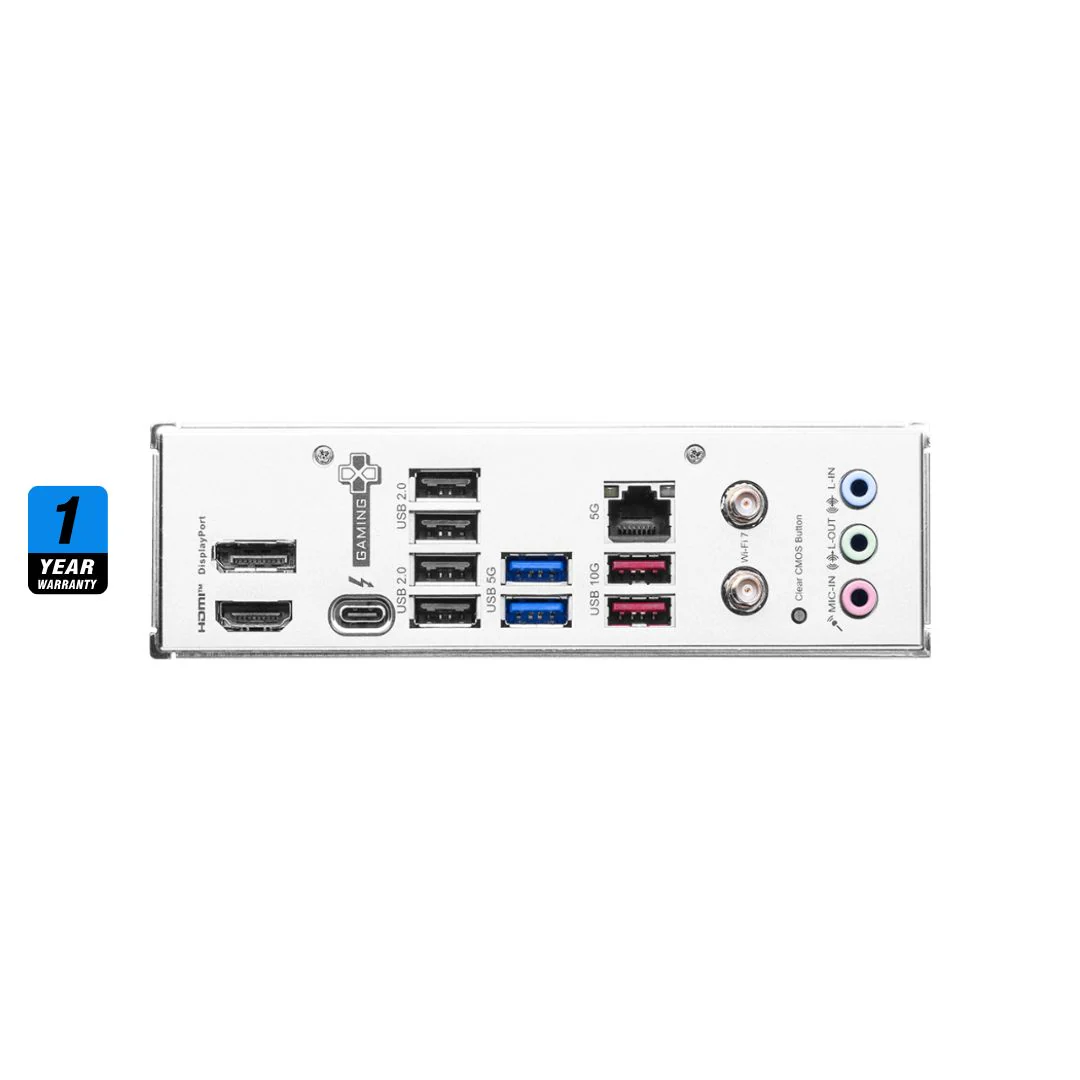

• Back Panel I/O Ports: HDMI, DP, Thunderbolt 4 (USB-C), USB 2.0/5Gbps/10Gbps, 5G LAN, Wi-Fi antenna, audio jacks, Clear CMOS
• Form Factor: ATX, 243.84mm × 304.8mm
