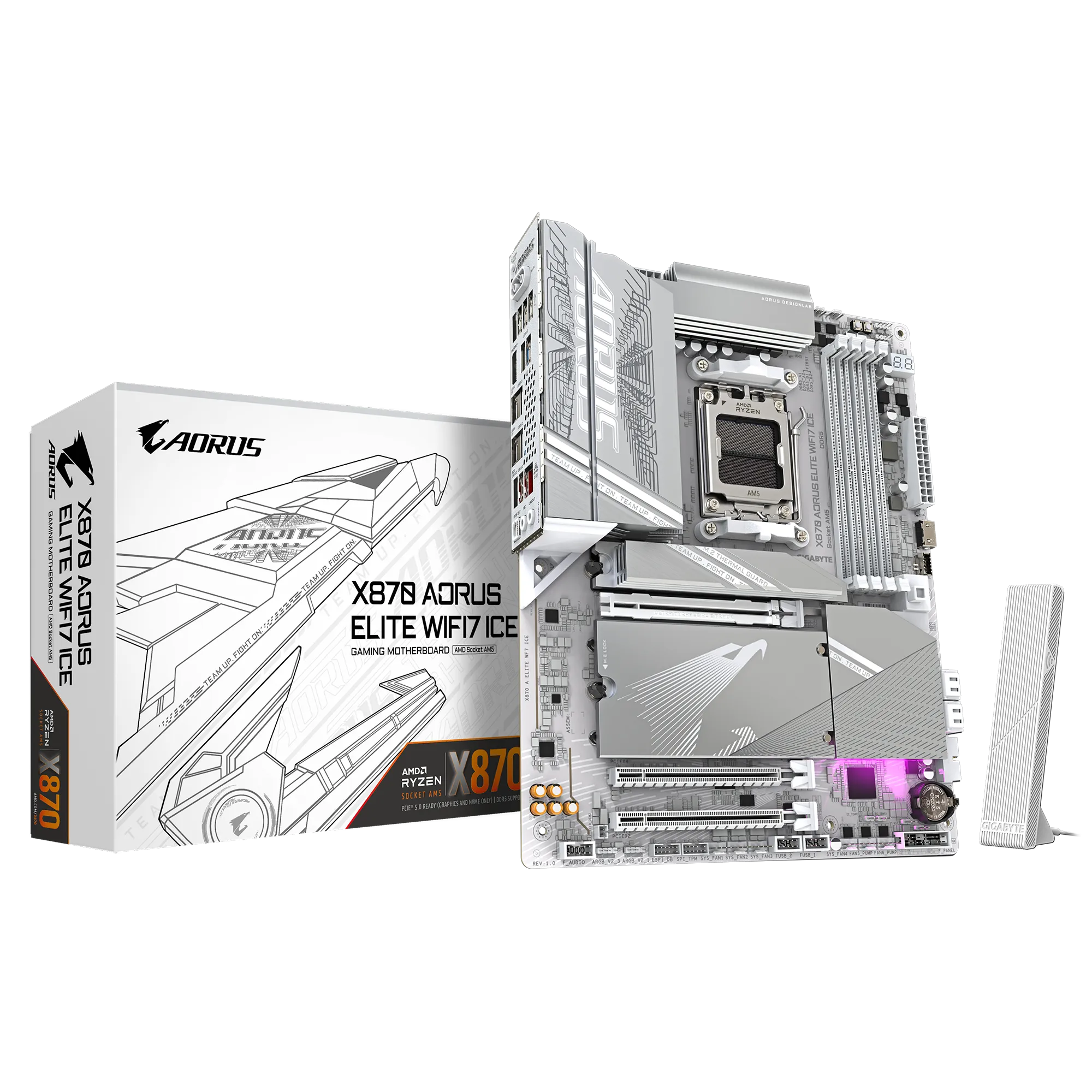

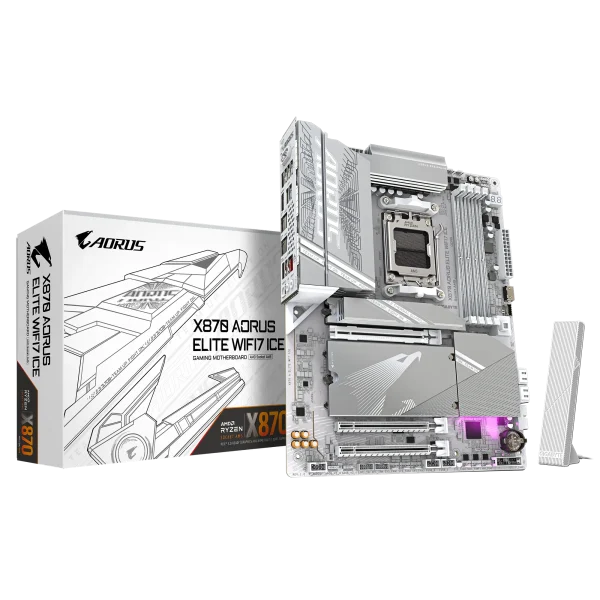

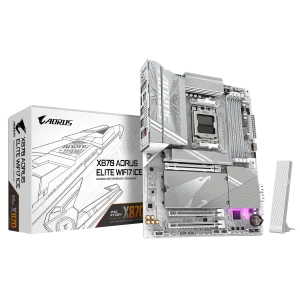

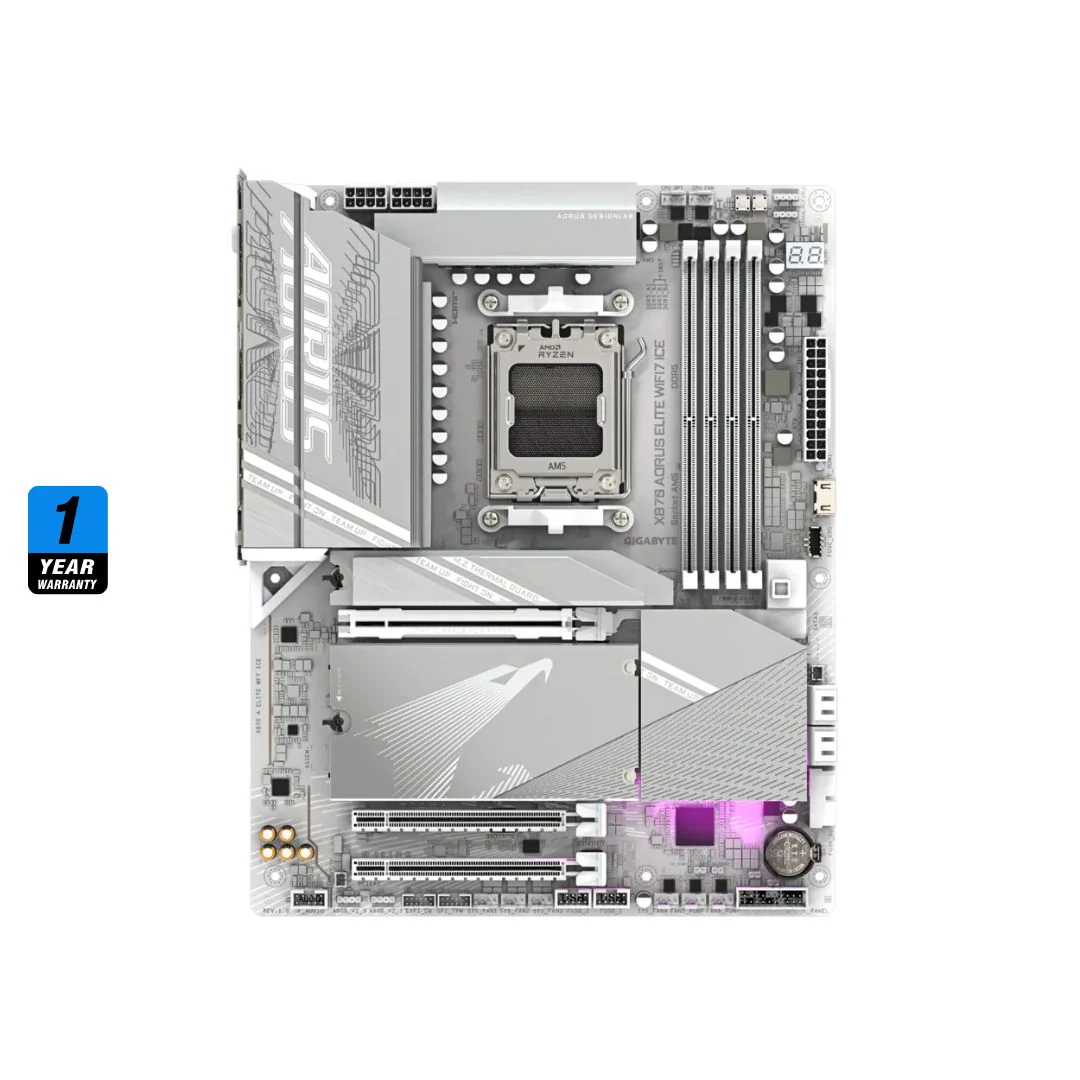

Gigabyte X870 AORUS ELITE WIFI7 ICE, Motherboard

Motherboard Specification

• Processor Support : AMD Socket AM5, supports Ryzen™ 9000 / 8000 / 7000 Series
• Chipset : AMD X870
• Memory Support : 4 x DDR5 DIMM, up to 256GB, DDR5 8200(O.C.) ~ 4400 MT/s, dual channel, AMD EXPO™ & XMP support
• Graphics Ports : 2 x USB4® Type-C (DP 3840×2160@240Hz), 1 x HDMI (4096×2160@60Hz), 1 x front HDMI (1920×1080@30Hz)
• Expansion Slots : 1 x PCIe x16 (CPU, up to PCIe 5.0), 1 x PCIe x16 (x4, chipset), 1 x PCIe x16 (x2, chipset)
• Storage : 4 x M.2 (PCIe 5.0/4.0 x4/x2, depends on CPU), 4 x SATA 6Gb/s, RAID 0/1/5/10 support
• Ethernet : Realtek® 2.5GbE LAN
• Wireless & Bluetooth : Wi-Fi 7 (MediaTek MT7925 or Realtek RTL8922AE), Bluetooth® 5.4
• USB :
Back: 2 x USB4® Type-C, 2 x USB 3.2 Gen2 Type-A (red), 4 x USB 3.2 Gen1, 4 x USB 2.0
Front: 1 x USB-C 3.2 Gen2x2, 1 x USB 3.2 Gen1 header (2 ports), 2 x USB 2.0 headers (4 ports)
• Audio : Realtek® ALC1220, 7.1 Channel HD Audio, S/PDIF Out, DSD support
• Internal I/O Connectors : 1 x 24-pin ATX, 2 x 8-pin ATX 12V, 6 x fan headers, 3 x ARGB Gen2, 1 x RGB header, 4 x M.2, 4 x SATA, USB-C 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0, noise sensor, TPM, HDMI, power/reset buttons, thermal sensors

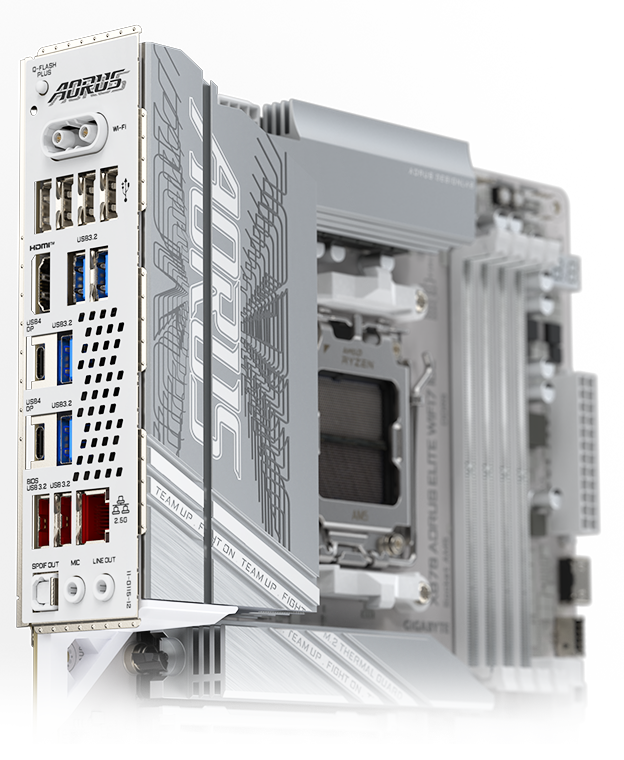

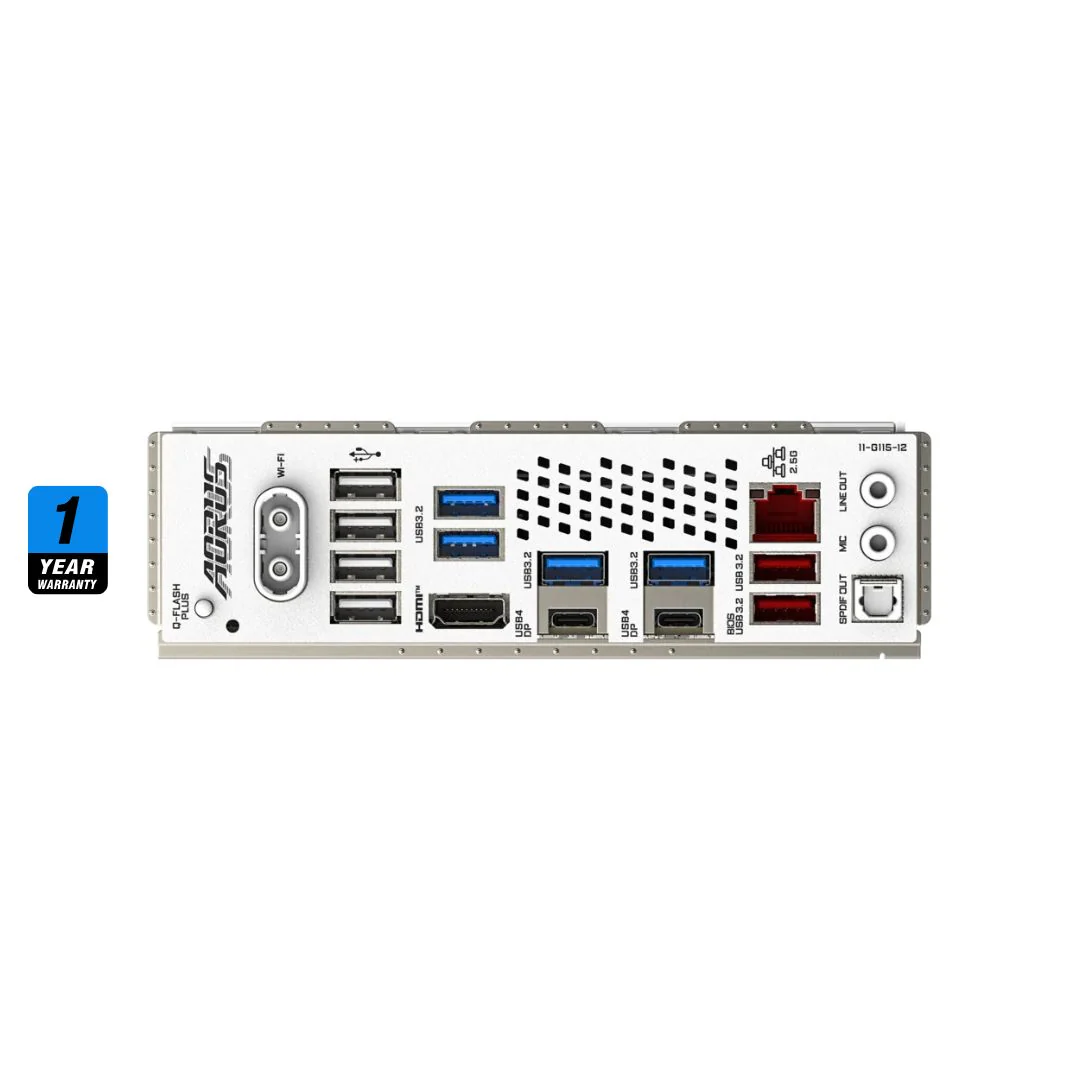

• Back Panel I/O Ports : 1 x Q-Flash Plus button, 1 x HDMI, 2 x USB4® Type-C, 2 x USB 3.2 Gen2 (red), 4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x RJ-45, 1 x Optical S/PDIF, 2 x Audio jacks, 2 x Antenna connectors
• Form Factor : ATX, 30.5 cm x 24.4 cm
