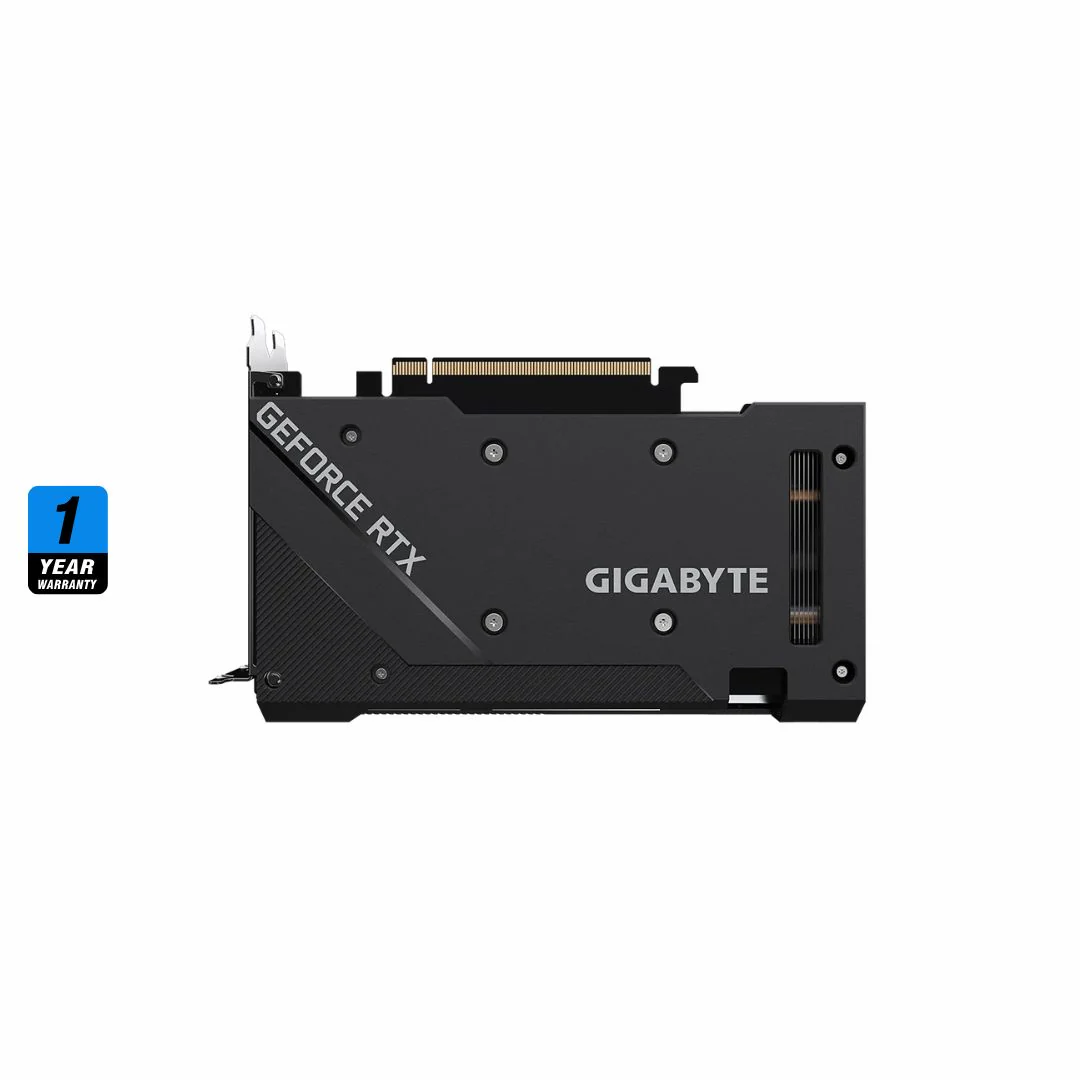

Gigabyte GeForce RTX™ 3060 WINDFORCE OC 12GB

GeForce RTX™ 3060 Specifications

Performance

• GPU Core:

  • Base Clock: 1777 MHz (Reference) | 1792 MHz (Your card, likely an OC variant)

  • CUDA Cores: 3584

• Memory:

  • Size: 12GB GDDR6

  • Bus Width: 192-bit

  • Clock Speed: 15,000 MHz (Effective)

  • Bandwidth: 360 GB/s

Compatibility & Power

• Interface: PCIe 4.0 x16

• Recommended PSU: 550W

• Power Connector: 1x 8-pin

Display & Connectivity

• Max Resolution: 7680×4320 (8K)

• Outputs:

  • 2x DisplayPort 1.4a

  • 2x HDMI 2.1 (Supports 4K@120Hz, 8K@60Hz, VRR)

• Multi-Monitor: Supports up to 4 displays simultaneously.

Physical Dimensions

• Size (L×W×H): 198 × 121 × 39 mm

• Form Factor: ATX (Fits most mid/full-tower cases).

Software & APIs

• DirectX: 12 Ultimate (Ray Tracing, Mesh Shaders)

• OpenGL: 4.6

• SLI/NVLink: Not Supported

Included Accessories

• Quick Guide (No mention of adapters or extra cables).
