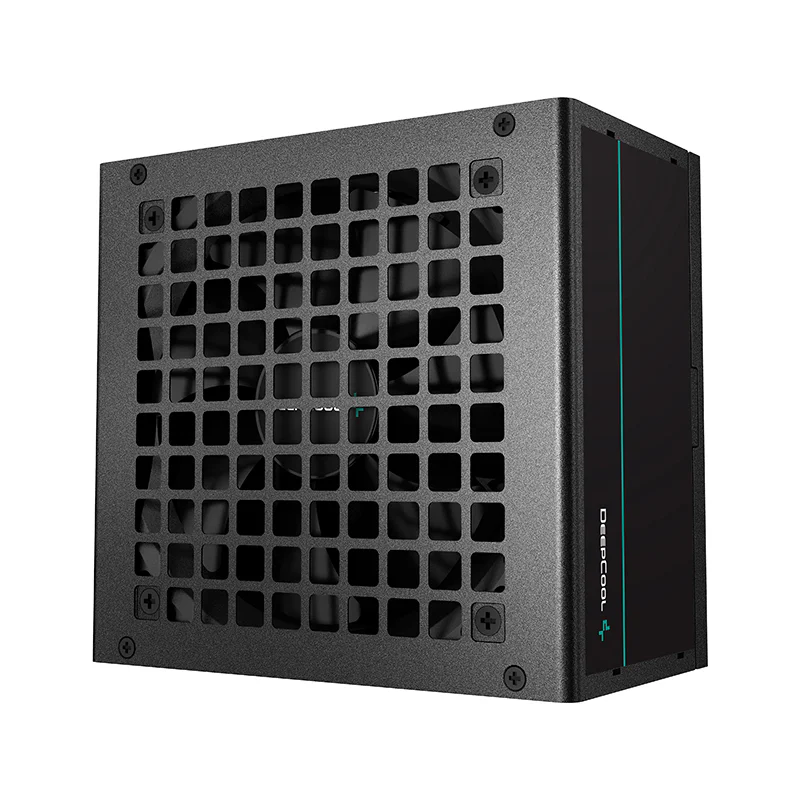

DeepCool PL800D 800W 80+ Bronze

Type	ATX12V V3.0
Product Dimensions (WxLxH)	150 × 140 × 86 mm
Efficiency certification	80Plus Bronze
Fan Size	120 mm
Fan Bearing	Hydro Bearing
Topology	Active PFC + DC to DC
Capacitors	Chinese Electrolytic Capacitors
Power Good Signal	100-150ms
Hold Up Time	≥16ms
Efficiency	≥85% Under Typical Load (50% Load)
Connectors	1x Main Power Connector 24-Pin (20+4)
	2x EPS 12V CPU 8-Pin (4+4)
	1x 12VHPWR (16-Pin)
	3x PCI-E 8-Pin (6+2)
	8x SATA
	2x 4-Pin Peripheral / Molex
Protection	OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature	0 – 40℃
Regulatory	CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/TUV-RH
MTBF	100,000 Hours
Warranty	5 Years
