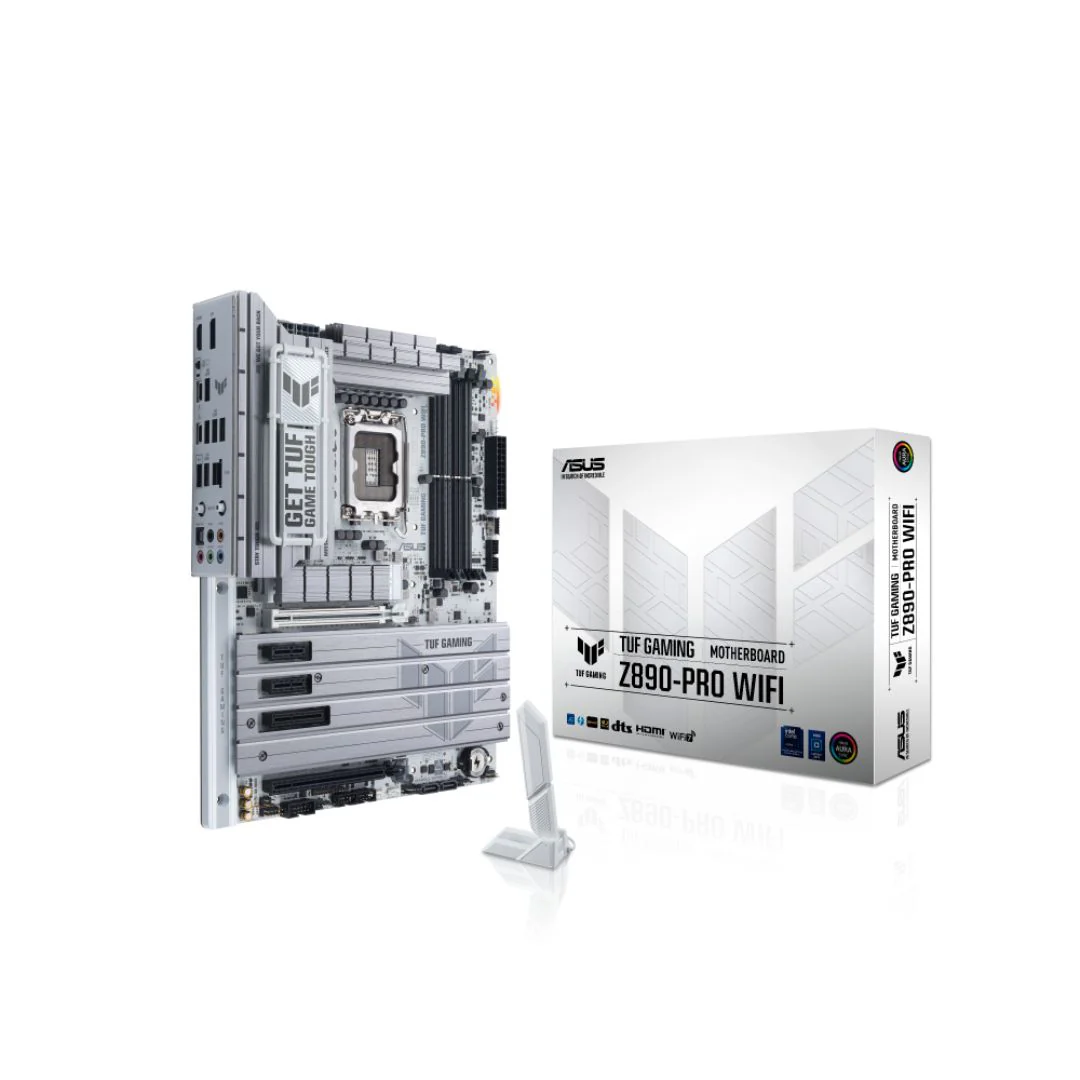

ASUS TUF GAMING Z890-PRO WIFI

Motherboard Specification

• Model: TUF GAMING Z890-PRO WIFI
• CPU Socket: LGA 1851 (Supports Intel® Core™ Ultra Processors Series 2)
• Chipset: Intel® Z890
• Power Solution: DIGI+ VRM (Digital power design with DrMOS), ProCool, Overvoltage protection
• Memory Support:
  • 4 x DIMM slots, max. 256GB, DDR5
  • Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
  • Dual channel memory architecture
  • Intel® Extreme Memory Profile (XMP), ASUS Enhanced Memory Profile III (AEMPIII)
• Graphics Ports:
  • 1 x DisplayPort (Max. 4K@60Hz as specified in DisplayPort 1.4)
  • 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1)
  • 2 x Intel® Thunderbolt™ 4 (USB Type-C®) with DisplayPort and Thunderbolt™ video outputs

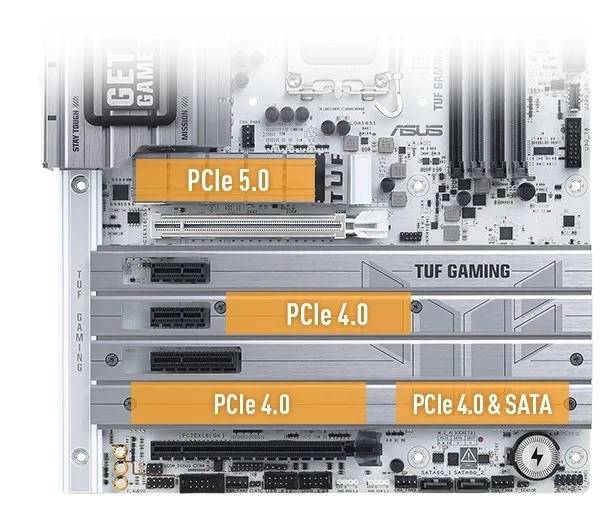

• Expansion Slots:
  • 1 x PCIe 5.0 x16 slot
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x4 slot
  • 2 x PCIe 4.0 x1 slots
• Storage:

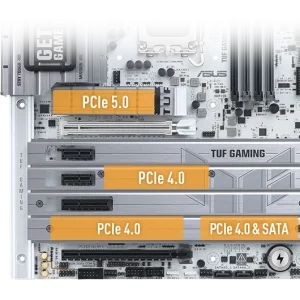

  • 4 x M.2 slots:
    • M.2_1: PCIe 5.0 x4 (2242/2260/2280)
    • M.2_2: PCIe 4.0 x4 (2280)
    • M.2_3: PCIe 4.0 x4 (2280/22110)
    • M.2_4: PCIe 4.0 x4 & SATA (2242/2260/2280)
  • 4 x SATA 6Gb/s ports
  • Intel® Rapid Storage Technology (RAID 0/1/5/10 support)
• Ethernet:
  • 1 x Intel® 2.5Gb Ethernet
  • TUF LANGuard
• Wireless & Bluetooth:

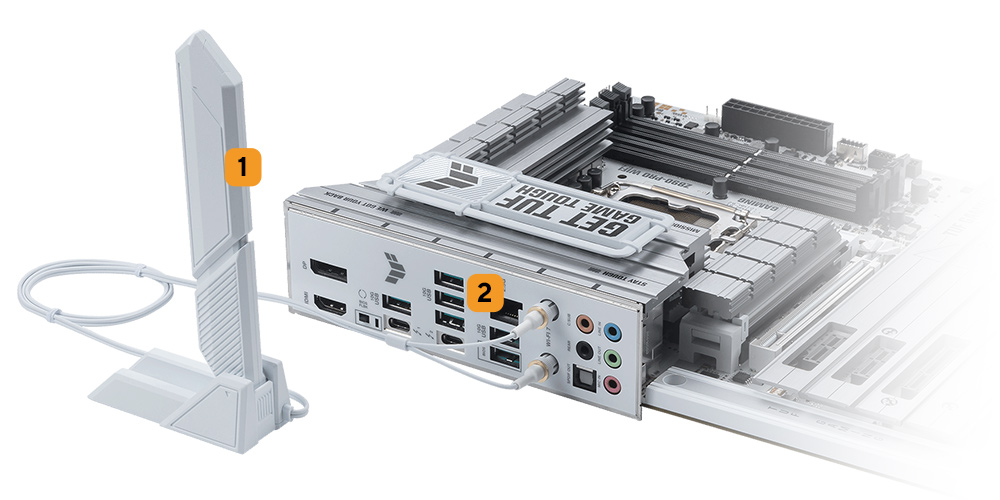

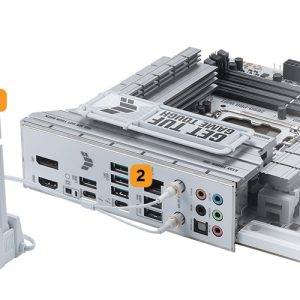

  • Wi-Fi 7 (802.11be), 2×2 with 2.4/5/6GHz frequency band
  • Bluetooth® v5.4
• USB Ports:
  • Rear USB (Total 8 ports):
    • 2 x Thunderbolt™ 4 (USB Type-C®)
    • 6 x USB 10Gbps (Type-A)
  • Front USB (Total 7 ports):
    • 1 x USB 20Gbps (USB Type-C® with up to 30W PD/PPS Fast-charge)
    • 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)
    • 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)
• Audio:
  • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
  • Impedance sense for front and rear headphone outputs
  • Internal audio amplifier for high-quality sound
  • High quality 120 dB SNR stereo playback and 113 dB SNR recording input
  • Audio shielding, premium audio capacitors, dedicated audio PCB layers, and optical S/PDIF out port
• Internal I/O Connectors:
  • Fan and Cooling Related:
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 4 x 4-pin Chassis Fan headers
  • Power Related:
    • 1 x 24-pin Main Power connector
    • 2 x 8-pin +12V CPU Power connectors
  • Storage Related:
    • 4 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • Miscellaneous:
    • 3 x Addressable RGB Gen 2 headers
    • 1 x Clear CMOS header
    • 1 x Chassis Intrusion header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (F_AUDIO)
    • 1 x 10-1 pin Front System Panel header
    • 1 x Thermal Sensor header
    • 1 x Thunderbolt™ (USB4®) header

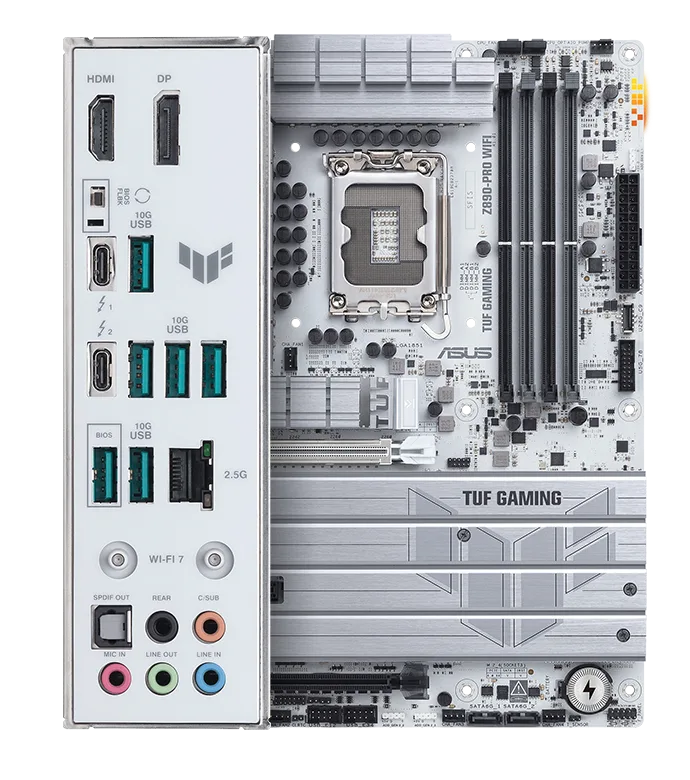

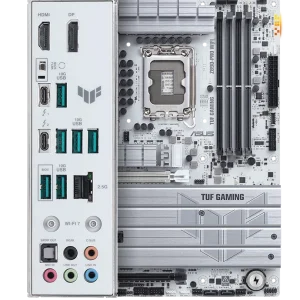

• Back Panel I/O Ports:
  • 2 x Thunderbolt™ 4 (USB Type-C®)
  • 6 x USB 10Gbps (Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Intel® 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
• Special Features:
  • ASUS TUF PROTECTION:
    • DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O
  • ASUS Q-Design:
    • M.2 Q-Latch, Q-Release, Q-Slide, Q-DIMM, Q-LED, Q-Slot, Q-Antenna, Q-Dashboard

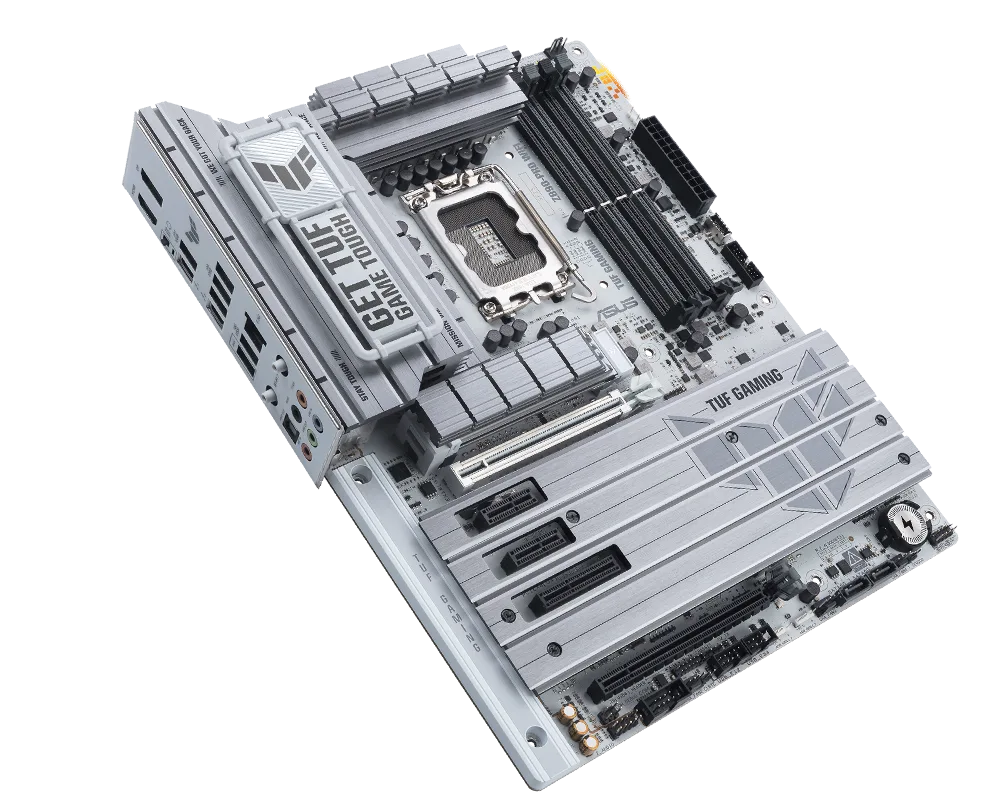

  • ASUS Thermal Solution:
    • M.2 heatsink backplate, VRM heatsink design
  • ASUS EZ DIY:
    • BIOS FlashBack™, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM
  • Aura Sync: Addressable Gen 2 headers
• Software & BIOS:
  • Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving)
  • ASUS DriverHub, ASUS GlideX, USB Wattage Watcher, TurboV Core, TUF GAMING CPU-Z
  • DTS Audio Processing, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
  • UEFI BIOS (256 Mb Flash ROM, UEFI AMI BIOS)
  • AI Overclocking Guide, ASUS EZ DIY: CrashFree BIOS 3, EZ Flash, UEFI BIOS EZ Mode, MyHotkey
• Accessories:
  • 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 Q-Slide package, 2 x M.2 rubber packages, 1 x Screw package for M.2 SSD, 1 x TUF GAMING sticker, 1 x TUF GAMING removable nameplate, 1 x Quick start guide
• Operating System Support:
  • Windows 11 (22H2 & later)
• Form Factor: ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
