ASUS TUF Gaming 1000W GOLD

ATX12V

Active PFC

ATX 3.1

150 x 150 x 86 mm

80Plus Gold

>120,000 hrs @ 40°C

OPP/OVP/UVP/SCP/OCP/OTP

ROHS

100-240Vac

+3.3V +5V +12V -12V +5Vsb

25A25A83.3A 0.8A 3A

130W 130W 1000W 9.6W 15W

1000W

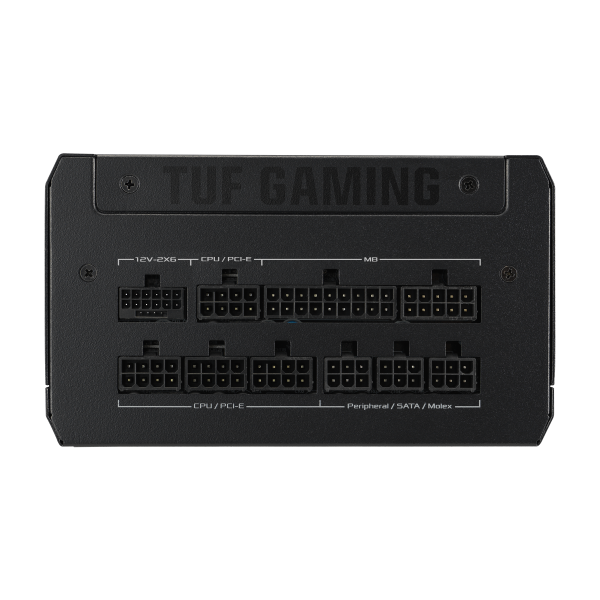

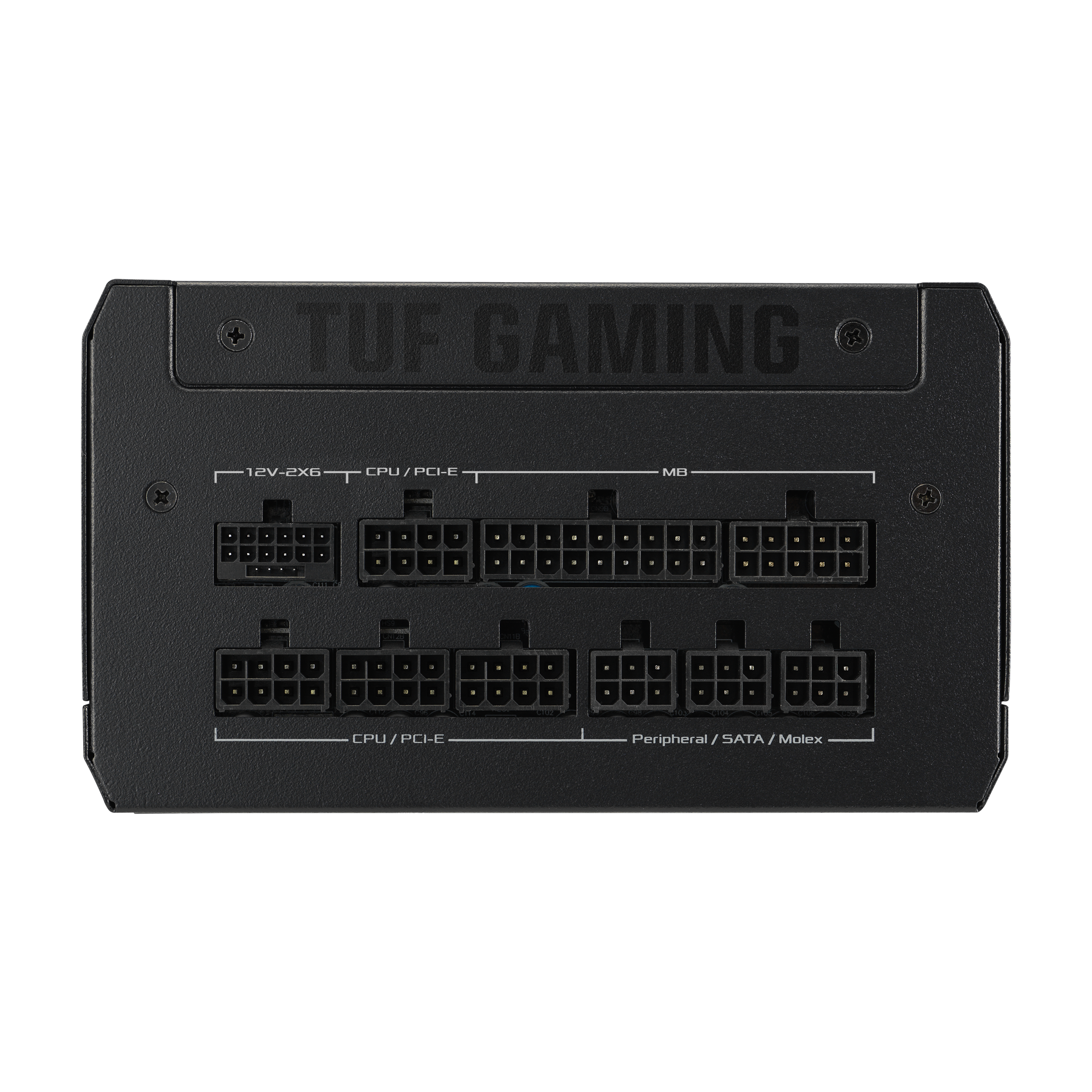

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1

2.48kg (single PSU)

Supported. The fan shuts off entirely when the PSU is under certain load

No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
