ASUS ROG STRIX X870-F GAMING WIFI

CPU & Chipset:

• Socket: AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
• Chipset: AMD X870
• Memory:
  • 4 x DIMM slots, max 192GB, DDR5
  • Support for memory speeds up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000, and 7000 Series
  • Supports ECC and Non-ECC, un-buffered memory
  • Dual-channel architecture, EXPO™ and AEMP for Overclocking

Graphics & Display:

• Display Outputs:
  • 1 x DisplayPort (max 8K@30Hz)
  • 1 x HDMI™ port (max 4K@60Hz)
  • 2 x USB4® ports (40Gbps) supporting USB Type-C® display output (max 4K@60Hz)

Expansion & Storage:

• Expansion Slots:
  • 1 x PCIe 5.0 x16 slot (for Ryzen™ 9000 & 7000 series)
  • 1 x PCIe 4.0 x16 slot (for Ryzen™ 8000 series)
  • 1 x PCIe 4.0 x16 slot (via AMD X870 chipset)
• Storage:
  • 4 x M.2 slots (PCIe 5.0 x4 for Ryzen™ 9000 & 7000 series, PCIe 4.0 x4 for Ryzen™ 8000 series)
  • 2 x SATA 6Gb/s ports
  • RAID support via AMD RAIDXpert2 Technology

Networking & Wireless:

• Ethernet: 1 x Intel® 2.5Gb Ethernet with ASUS LANGuard
• Wi-Fi: Wi-Fi 7 (802.11be), up to 6.5Gbps transfer rate, supporting 2.4/5/6GHz frequencies
• Bluetooth: Bluetooth® 5.4

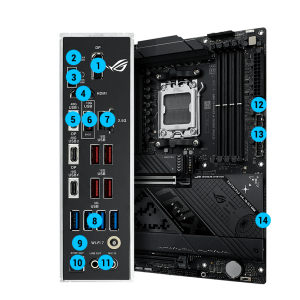

USB Ports:

• Rear USB (Total 12 ports):
  • 2 x USB4® (40Gbps, Type-C® with DP Alt mode)
  • 6 x USB 10Gbps (5 x Type-A + 1 x USB Type-C® with 30W PD Fast-charge)
  • 4 x USB 5Gbps (Type-A)
• Front USB:
  • 1 x USB 20Gbps (Type-C®)
  • Additional USB ports via 2 x USB 5Gbps and 2 x USB 2.0 headers

Audio:

• ROG SupremeFX 7.1 Surround Sound: High Definition Audio CODEC ALC4080
  • 120 dB SNR stereo output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback
• Audio Features: SupremeFX Shielding, Savitech SV3H712 AMP, Premium capacitors

Special Features:

• Thermal Solutions: M.2 heatsinks, backplate, and thermal pads
• ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED (diagnostic LEDs)
• Aura Sync: Addressable Gen 2 headers for RGB lighting control
• Extreme Engine Digi+: 5K Black Metallic Capacitors
• EZ DIY: BIOS FlashBack™, Clear CMOS button, Pre-mounted I/O shield, SafeDIMM

Software:

• ROG Exclusive: ROG CPU-Z, Dolby Atmos
• ASUS Software: Armoury Crate, Fan Xpert 4 (AI Cooling II), GameFirst, HWiNFO, Power Saving
• Utility Software: TurboV Core, USB Wattage Watcher, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (Free Trial)

Form Factor:

• Size: ATX (12″ x 9.6″ / 30.5 cm x 24.4 cm)

Other Features:

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS with EZ Mode, AI Overclocking Guide, Dynamic OC Switcher
• Manageability: WOL by PME, PXE
