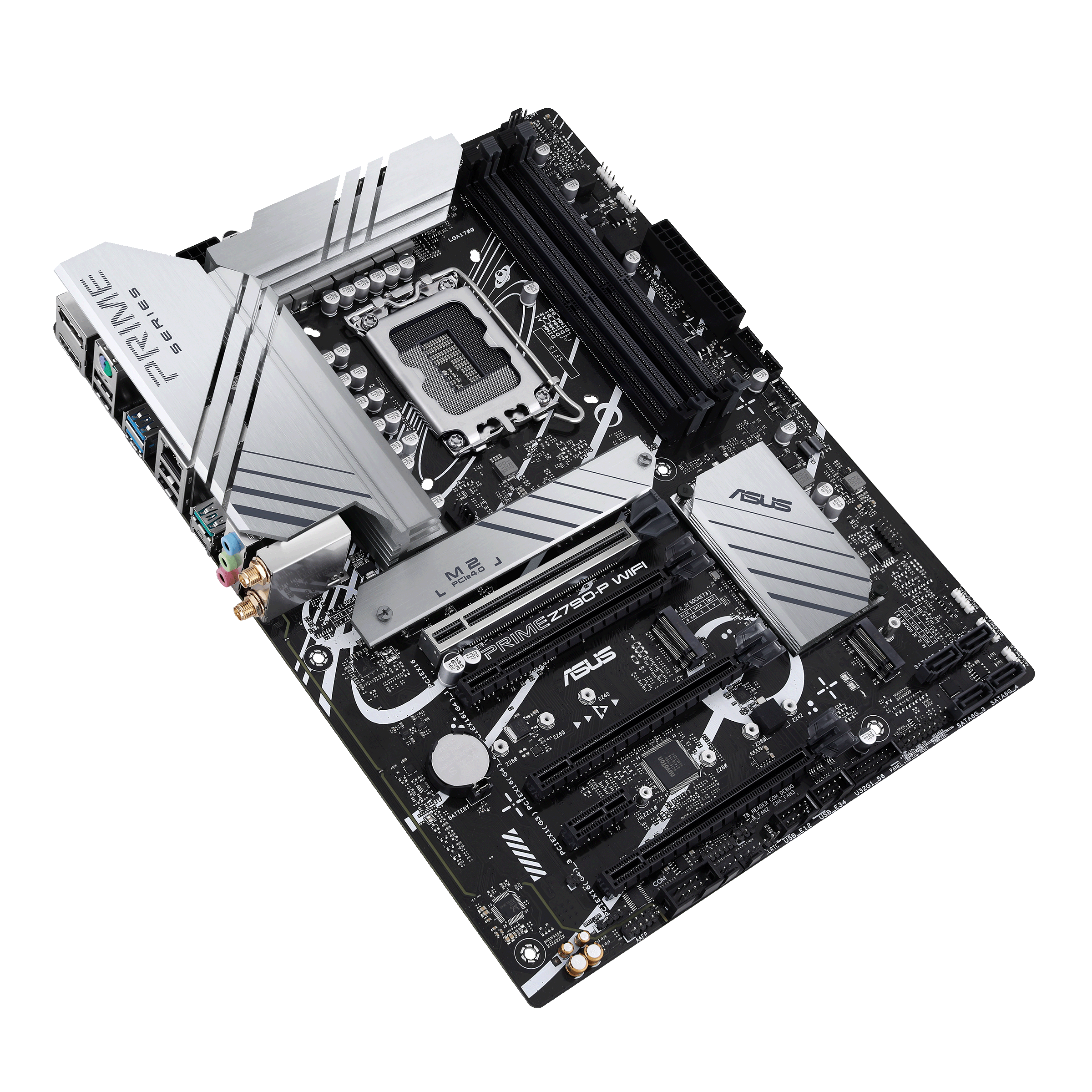

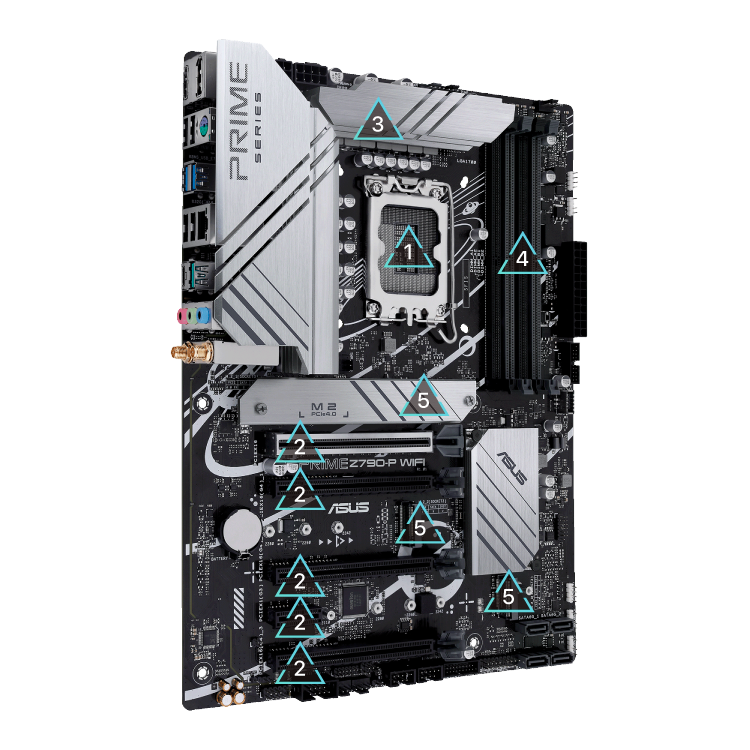

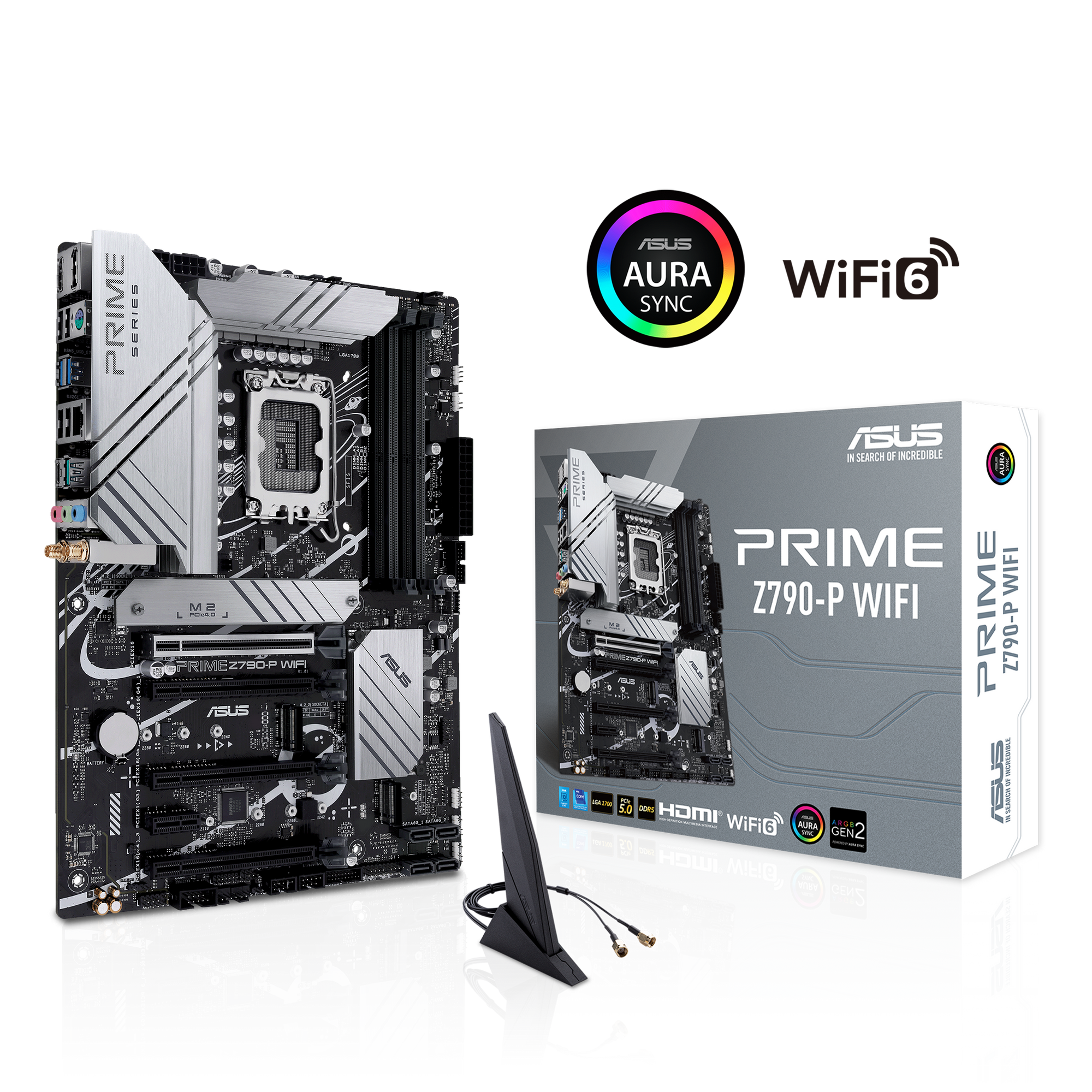

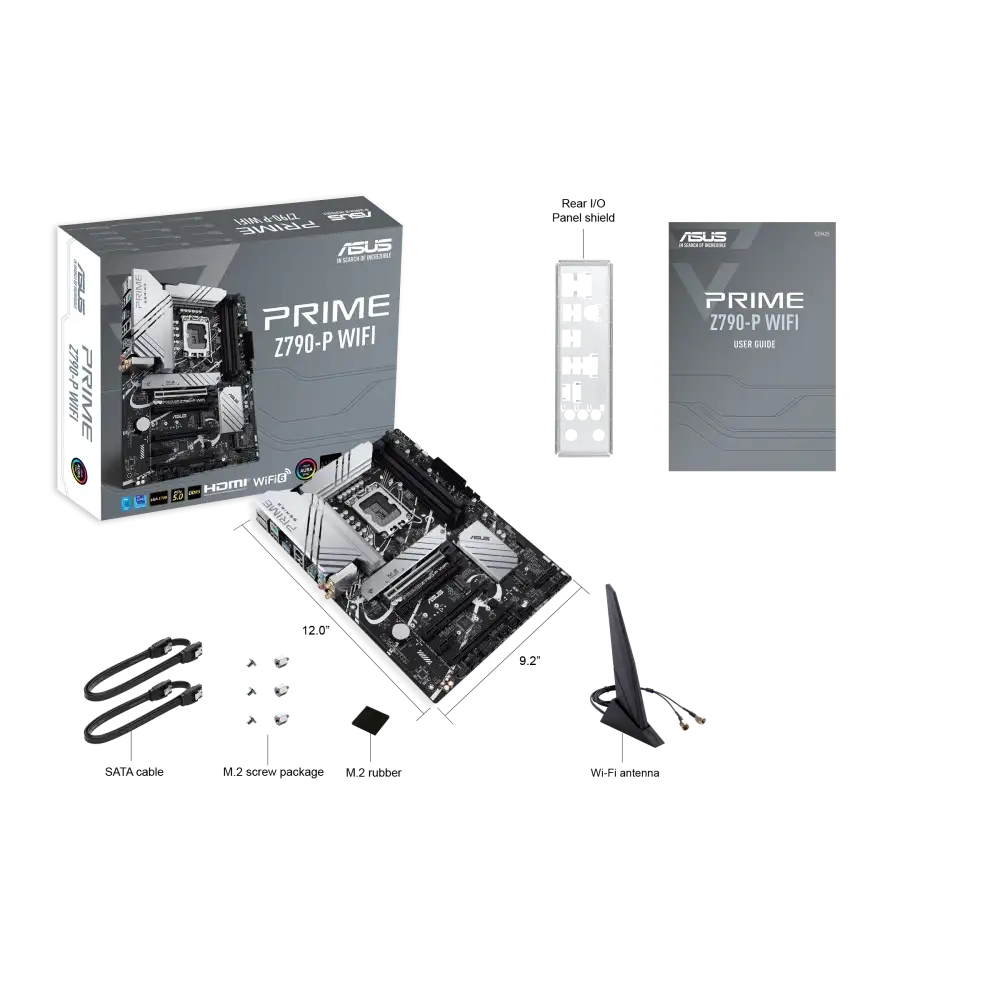

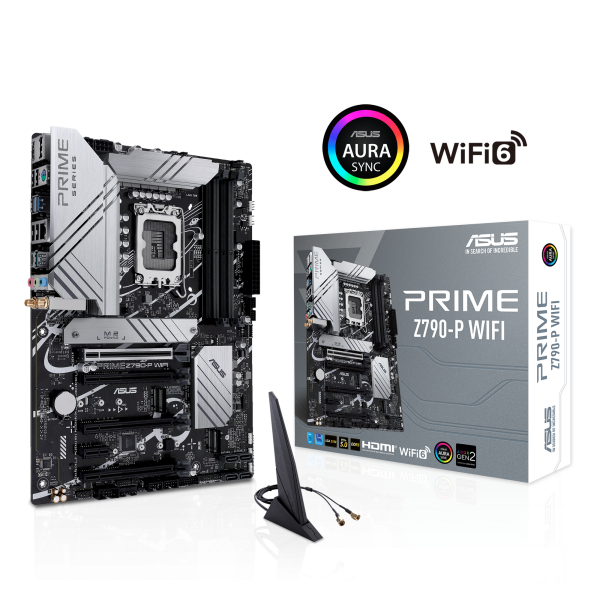

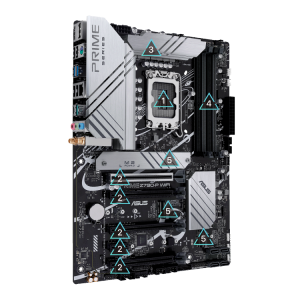

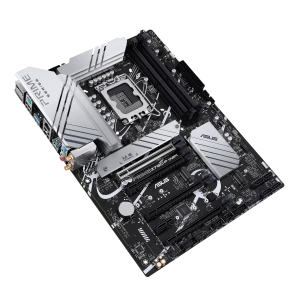

ASUS PRIME Z790-P WIFI

• Model: ASUS PRIME Z790-P WIFI
• Chipset: Intel Z790
• Socket: LGA1700 – Supports Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors
• Form Factor: ATX
• Memory Support:
– 4 × DDR5 DIMM slots
– Up to 128GB, up to 7200+ MHz (OC)
– Dual Channel, AEMP II, OptiMem II
• Graphics Outputs: 1 × HDMI 2.1, 1 × DisplayPort 1.4
• Audio: Realtek 7.1 Channel HD Audio
• Expansion Slots:
– 1 × PCIe 5.0 x16 (SafeSlot Core+)
– 3 × PCIe 4.0 x16 (x4/x1 modes)
– 1 × PCIe 3.0 x1
• Storage:
– 3 × M.2 (PCIe 4.0 x4, one supports SATA)
– 4 × SATA III
– RAID 0/1/5/10 support
• Networking:
– Realtek 2.5Gb Ethernet
– Intel Wi-Fi 6
– Bluetooth 5.2
• USB Ports:
– Rear: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0
– Internal: USB 3.2 Gen 2 Type-C header, USB 3.2 Gen 1, USB 2.0 headers
• Cooling & Features:
– 14+1 DrMOS Power Stages
– Large VRM heatsinks, M.2 heatsinks, PCH heatsink
– Hybrid fan headers, Fan Xpert 4, AI Cooling II
– Q-LED, BIOS FlashBack, Thunderbolt 4 (USB4) header
• RGB: Aura Sync support
• OS Support: Windows 11 / Windows 10 64-bit
• Warranty: 3-Year Manufacturer Warranty
