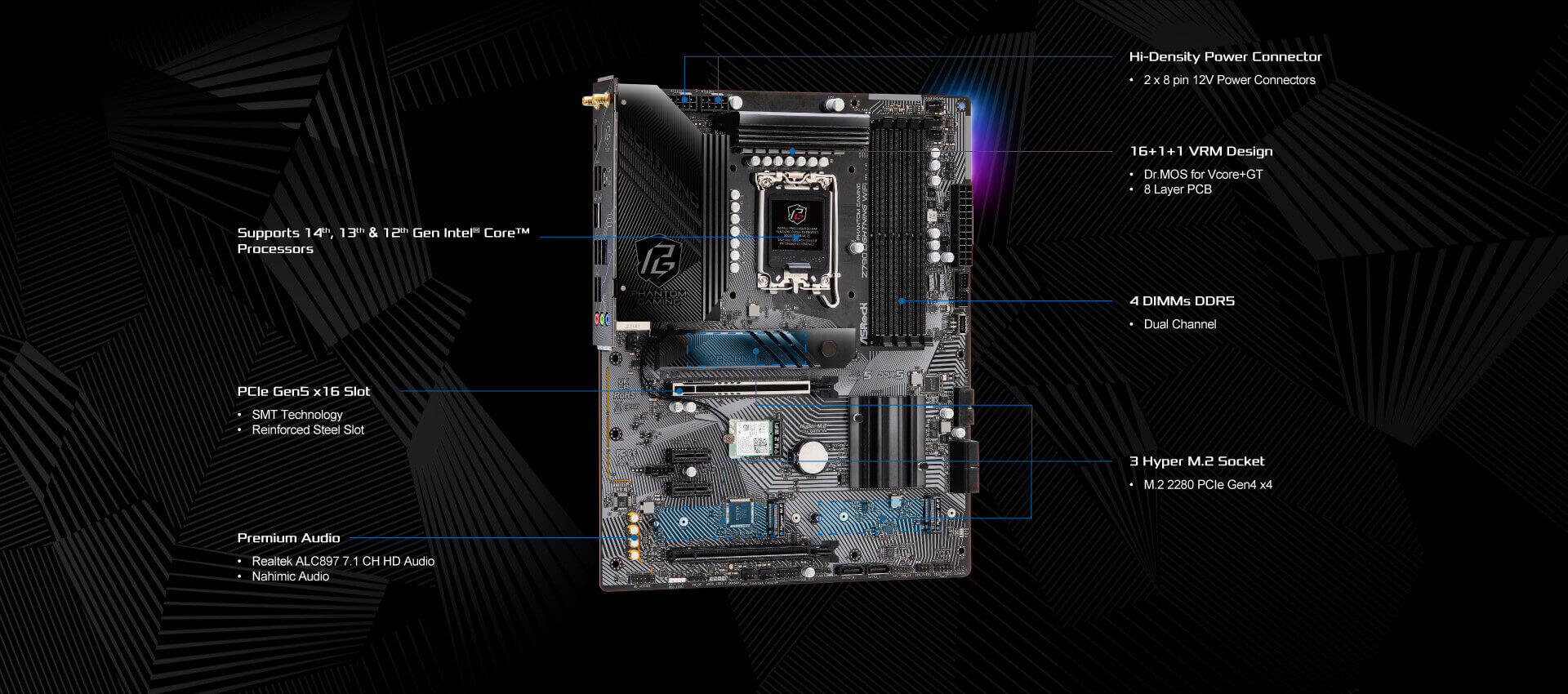

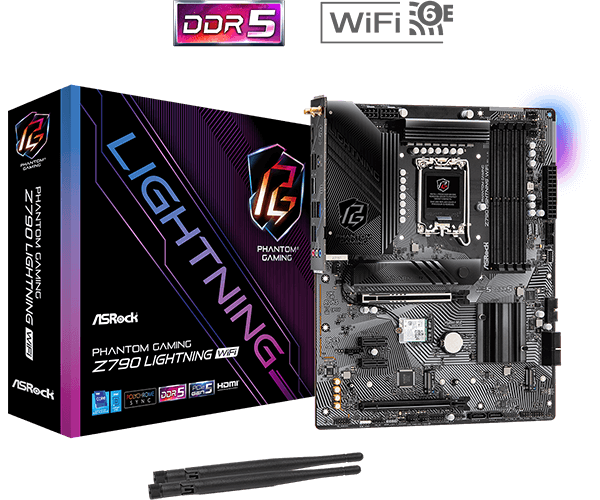

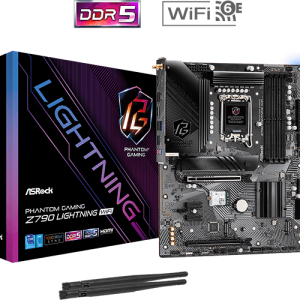

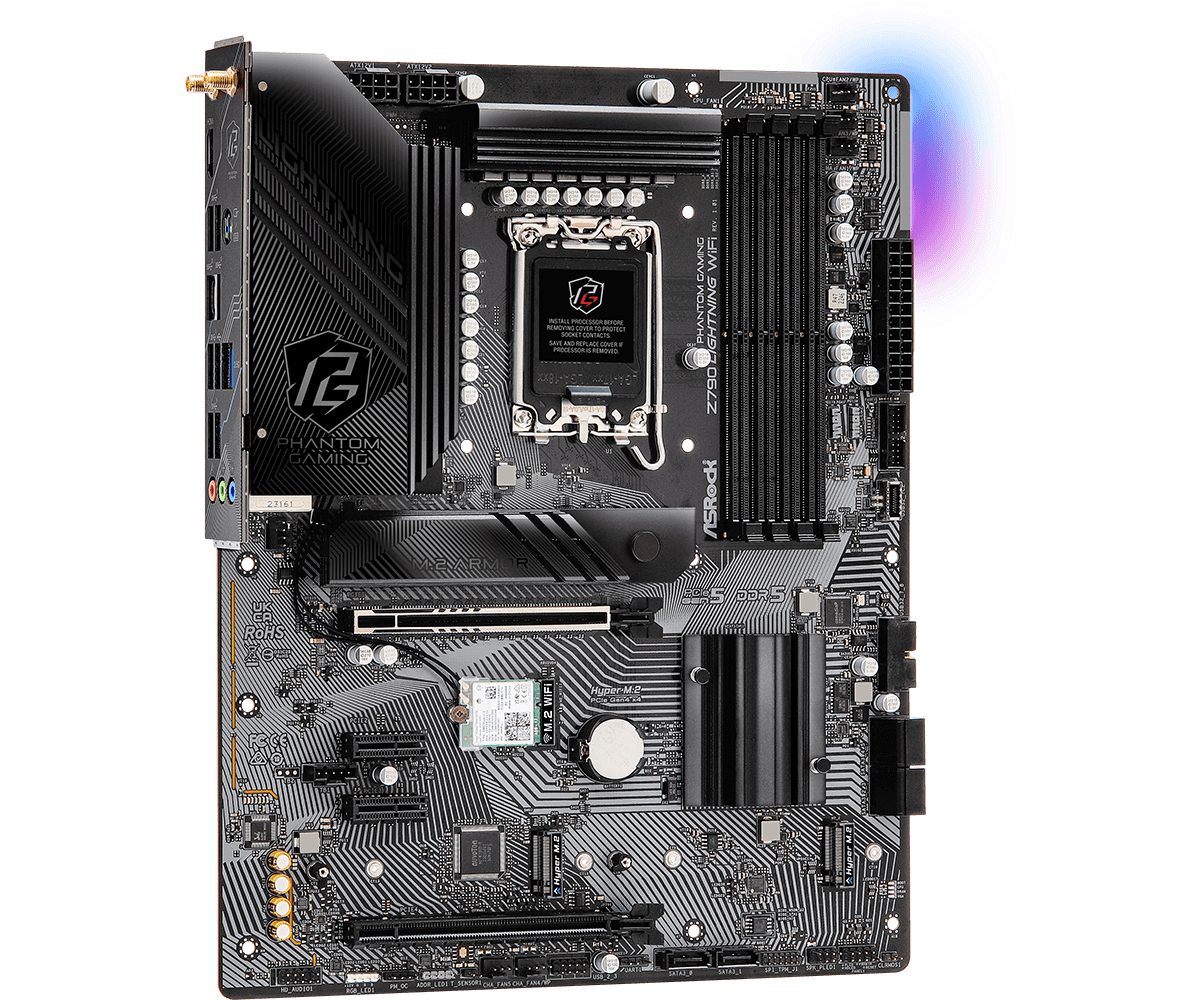

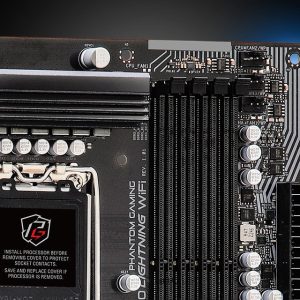

ASROCK Z790 LIGHTINING WIFI DDR5

Superb Productivity
– PCIe Gen5 (Graphics)
– Dual Channel DDR5
Rock-Solid Durability

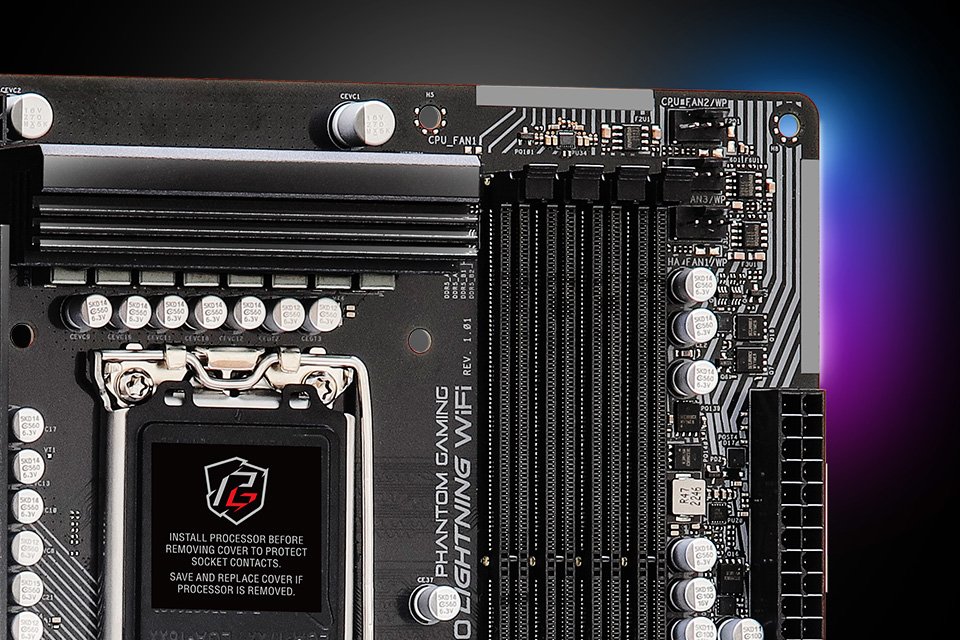

– 16+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
– Flexible Pre-Installed I/O Shield
Ultrafast Connectivity
– Killer 2.5G LAN, Killer
802.11ax Wi-Fi 6E Module
– Killer DoubleShot™ Pro
EZ Update
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker

– Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
– Supports Intel^® Hybrid Technology
– Supports Intel^® Turbo Boost Max 3.0 Technology
– Supports Intel^® Thermal Velocity Boost (TVB)
– Supports Intel^® Adaptive Boost Technology (ABT)

– Intel^® Z790

– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 7600+(OC)*
– Max. capacity of system memory: 256GB
– Supports Intel^® Extreme Memory Profile (XMP) 3.0

– 128Mb AMI UEFI Legal BIOS with GUI support

– Intel^® Xe Graphics Architecture (Gen 12)
– 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Killer E3100G
– Supports Killer LAN Software
– Supports Killer DoubleShot™ Pro

– 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 160MHz with extended 6GHz band support*
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.3 + High speed class II
– Supports MU-MIMO
– Supports Killer LAN Software
– Supports Killer DoubleShot™ Pro

CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
– 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT)*
– Supports AMD CrossFire™

CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 6 x SATA3 6.0 Gb/s Connectors

– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

– 1 x USB 3.2 Gen2x2 Type-C (Rear)
– 2 x USB 3.2 Gen2 Type-A (Rear)
– 1 x USB 3.2 Gen1 Type-C (Front)
– 8 x USB 3.2 Gen1 Type-A (4 Rear, 4 Front)
– 3 x USB 2.0 (1 Rear, 2 Front)

– 1 x eDP Signal Connector
– 1 x Thermistor Cable Header
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 1 x Chassis Fan Connector (4-pin)*****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
– 1 x 24 pin ATX Power Connector
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header

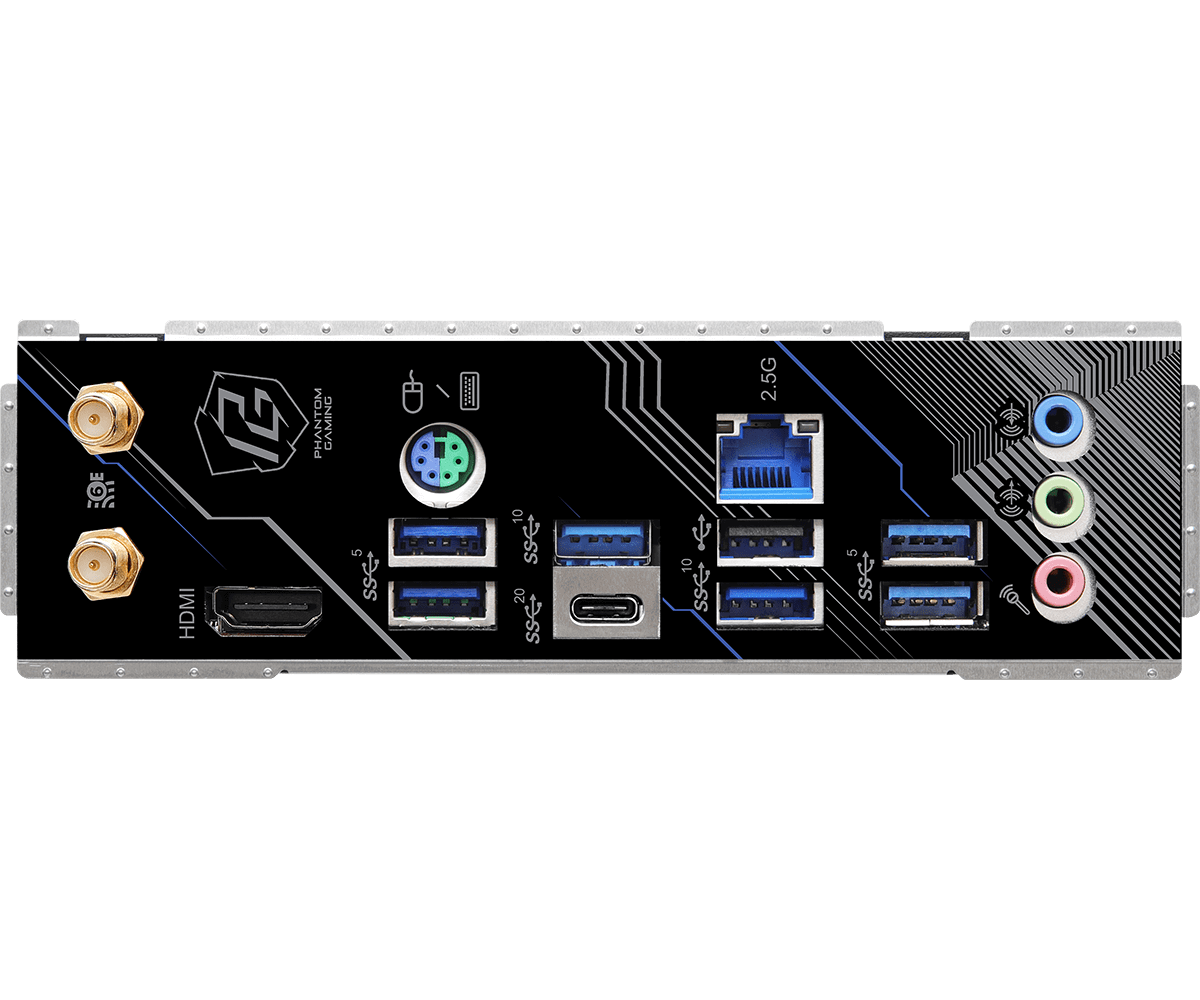

– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 4 x USB 3.2 Gen1 Ports
– 1 x USB 2.0 Port
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– Killer Control Center
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer

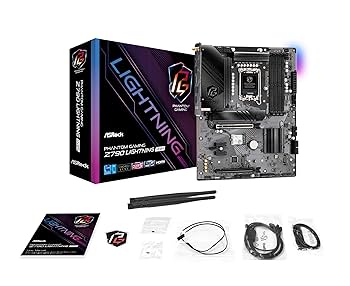

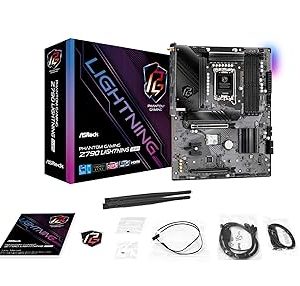

– 1 x User Manual
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
– 1 x ARGB Splitter Cable
– 1 x Thermistor Cable
– 1 x Screw for M.2 Socket
– 1 x Standoff for M.2 Socket

– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB

– Microsoft Windows^® 10 64-bit / 11 64-bit

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
